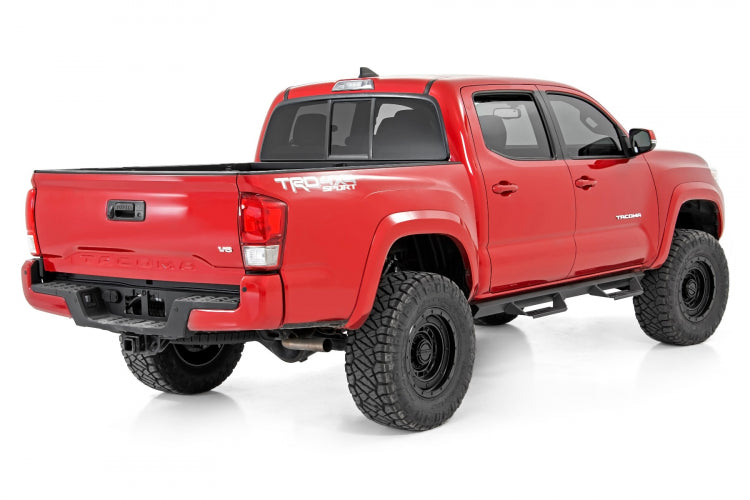

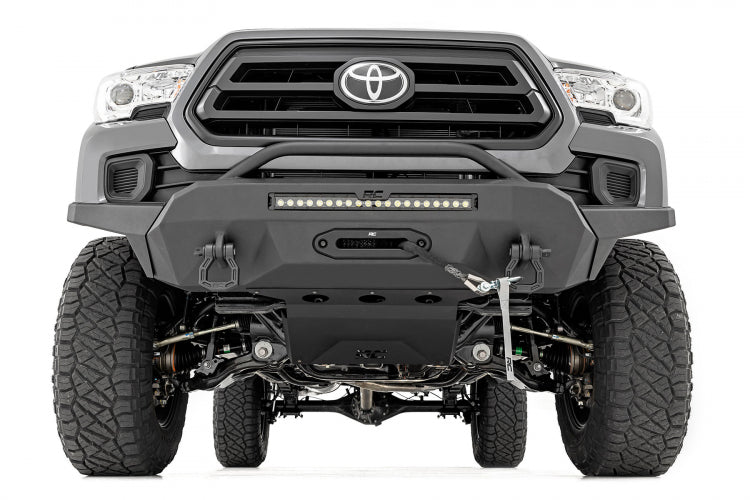

3.5 INCH LIFT KIT TOYOTA TACOMA 4WD 2005-2023


Price:
Sale price$1,099.95

Description

OVERVIEW

Rough Country's 3.5in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 05-21 Toyota Tacoma.

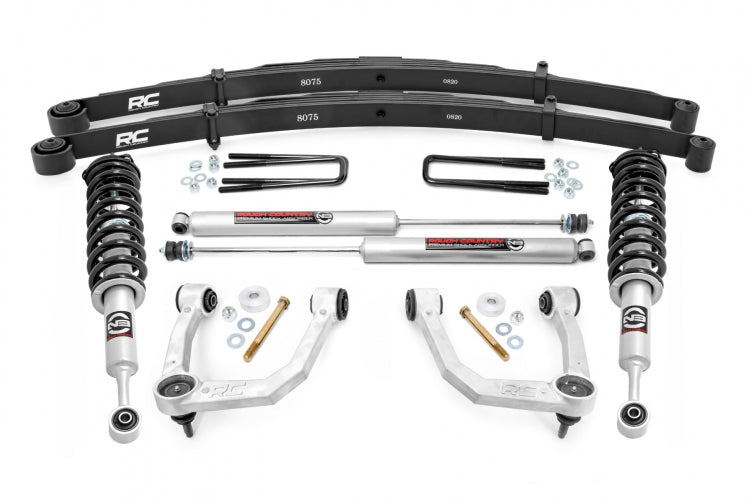

This kit features a set of high-quality, light weight, forged aluminum Upper Control Arms designed to make alignment adjustments easier and durable rubber bushings. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.

Rough Country’s 3.5-inch Bolt-On Kit features N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of loaded N3 struts and fabricated rear leaf springs to provide lift height from front to rear. Once installed, this kit gives your truck plenty of ride height for larger tires while offering a clean, level look from front to rear.

This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires minor cutting and drilling. This kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

FEATURES

  • Easy installation.
  • Increased ground clearance.
  • Maintains factory ride quality.
  • Levels the front with the rear of the vehicle.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Rear springs minimize axle wrap.
  • Rough Country's rear springs are an excellent option to replace worn-out factory springs.

SPECIFICATIONS

  • Brand: Rough Country
  • Est. Install Time: 2-4 hours

OPTIONAL N3 LOADED STRUTS

  • Includes pre-loaded coil.
  • Maintains smooth, factory-like ride.
  • Increased ground clearance.
  • Engineered for lifted applications.
  • Infinitely variable damping.
  • Leak-proof piston seal.
  • Massive 1 3/8in bore.
  • Silver powder coat finish.
  • 3-year Manufacturer's Warranty.

  • OPTIONAL M1 LOADED STRUTS

  • 2-inch seamless extruded tube.
  • 46mm digressive piston.
  • Nitrogen-charged
  • Digressive valving.
  • Fast heat dissipation
  • Monotube design
  • Natural rubber bushings.
  • Zinc plated aluminum body.
  • 3-year Manufacturer's Warranty.

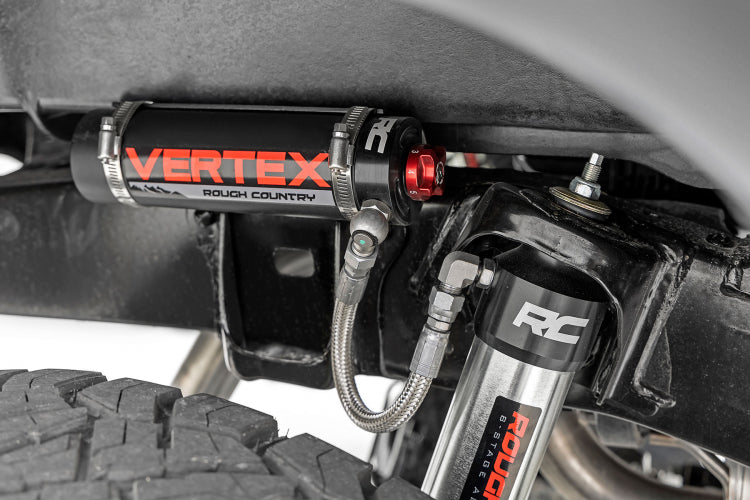

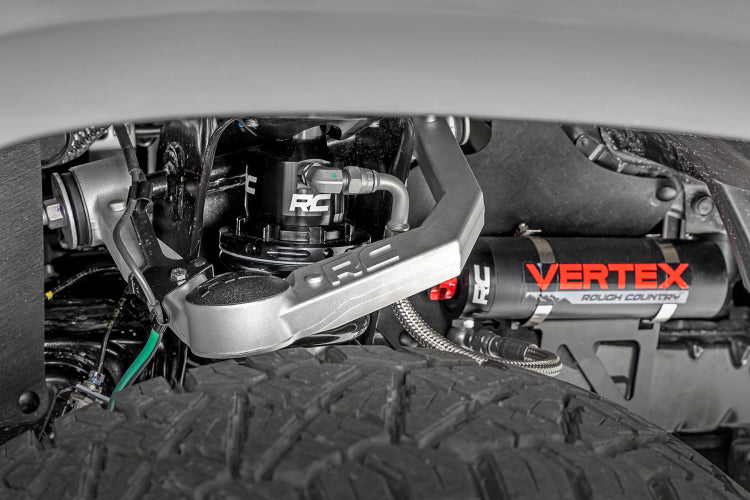

  • OPTIONAL VERTEX

  • 8-Stage Adjustable Damping.
  • Monotube Design.
  • Nitrogen-charged.
  • Massive 2.5in Piston.
  • 22mm Chrome-Hardened Piston Rod.
  • 3-Stage Seal System.
  • Heat-Treated, Alloy Bearing.
  • Honed Steel Body.
  • 3-year Manufacturer's Warranty.
  •

    NOTES - IMPORTANT

    • Requires minor cutting.
    • Does NOT fit models with 5 lug wheels.
    • Does NOT fit T/X Baja models.
    • Does NOT fit XSP-X models.
    • Does NOT fit PRO Series models.
    • A carrier-bearing drop bracket is advised for trucks equipped with a 2-piece rear driveshaft. SKU: 1776BOX1.

    VEHICLE FITMENT

    YEARS DRIVE MAKE MODEL
    2005-2023 4WD Toyota Tacoma


    RECOMMENDED TIRES & WHEELS

    TIRE WHEEL BOLT PATTERN OFFSET NOTE
    285/75R16 Factory 16 6x5.5 - 0.25 Spacer
    285/70R17 Factory 17 6x5.5 - 0.25 Spacer
    285/70R17 17x8.5 6x5.5 +0 Minor trimming
    265/70R17 17x8.5 6x5.5 +0 -
    285/70R17 17x8.5 6x5.5 +1 Minor trimming
    265/70R17 17x8.5 6x5.5 +1 -
    285/70R17 17x9 6x5.5 -12 Minor Trimming
    265/70R17 17x9 6x5.5 -12 -
    285/70R17 17x9 6x5.5 +0 Minor trimming
    265/70R17 17x9 6x5.5 +0 -
    285/70R17 17x9 6x5.5 +1 Minor trimming
    265/70R17 17x9 6x5.5 +1 -
    285/65R18 18x8.5 6x5.5 +0 Minor trimming
    265/70R18 18x8.5 6x5.5 +0 -
    285/65R18 18x8.5 6x5.5 +1 Minor trimming
    265/70R18 18x8.5 6x5.5 +1 -
    285/65R18 18x9 6x5.5 -12 Minor Trimming
    265/70R18 18x9 6x5.5 -12 -
    265/65R18 18x9 6x5.5 -12 Minor Trimming
    285/65R18 18x9 6x5.5 +0 Minor trimming
    265/70R18 18x9 6x5.5 +0 -
    265/65R18 18x9 6x5.5 +0 Minor Trimming
    285/65R18 18x9 6x5.5 +1 Minor trimming
    265/70R18 18x9 6x5.5 +1 -
    265/65R18 18x9 6x5.5 +1 Minor Trimming
    285/55R20 20x9 6x5.5 -12 Minor Trimming
    285/55R20 20x9 6x5.5 +0 Minor trimming
    285/55R20 20x9 6x5.5 +1 Minor trimming
