Description
OVERVIEW

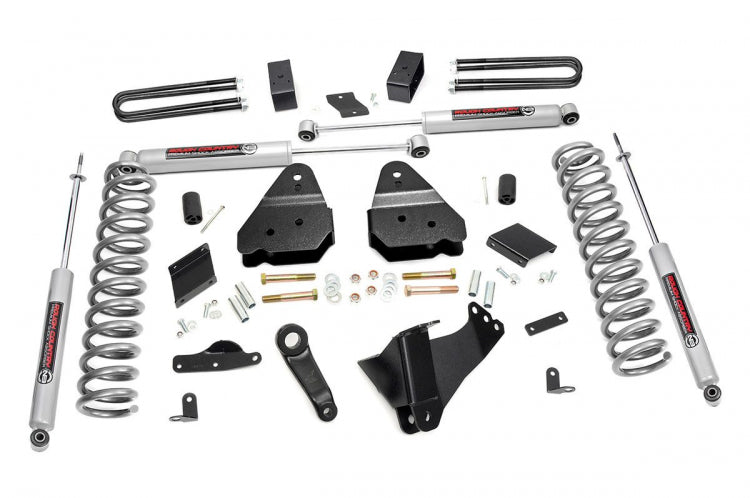

Give your 11-14 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.
This kit features a set of front, lifted coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of sway bar drop brackets and track bar are provided to keep everything at optimum angles for a factory-like ride, even after lifting.
A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 4.5" 11-14 Ford Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
Best of all, Rough Country's 4.5” Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty!
FEATURES
-
Easy bolt-on installation
-
Increased ground clearance
-
Levels the front with the rear of the vehicle
-
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
-
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
-
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
OPTIONAL PREMIUM N3 SHOCKS
OPTIONAL V2 MONOTUBE SHOCKS
OPTIONAL VERTEX SHOCKS
NOTES - IMPORTANT
- Does NOT F-350 models.
- Does NOT fit gas engine models.
- Does NOT fit dually models.
- A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. (#1197)
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
---|---|---|---|
2011-2014 | 4WD | Ford | F-250 Super Duty |
RECOMMENDED TIRES & WHEELS
TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
---|---|---|---|---|
35x12.50R17 | 17x9 | 8x170 | -12 | - |
35x12.50R17 | 17x9 | 8x170 | +0 | - |
35x12.50R17 | 17x9 | 8x170 | +1 | - |
35x12.50R18 | 18x9 | 8x170 | -12 | - |
35x12.50R18 | 18x9 | 8x170 | +0 | - |
35x12.50R18 | 18x9 | 8x170 | +1 | - |
35x12.50R20 | 20x9 | 8x170 | -12 | - |
35x12.50R20 | 20x9 | 8x170 | +0 | - |
35x12.50R20 | 20x9 | 8x170 | +1 | - |
295/60R20 | 20x10 | 8x170 | -25 | Minor Trimming |
295/60R20 | 20x10 | 8x170 | -24 | Minor Trimming |
295/60R20 | 20x10 | 8x170 | -19 | Minor Trimming |
295/60R20 | 20x10 | 8x170 | -18 | Minor Trimming |
35x12.50R20 | 20x10 | 8x170 | -25 | Minor Trimming |
35x12.50R20 | 20x10 | 8x170 | -24 | Minor Trimming |
35x12.50R20 | 20x10 | 8x170 | -19 | Minor Trimming |
35x12.50R20 | 20x10 | 8x170 | -18 | Minor Trimming |
35x12.50R20 | 20x12 | 8x170 | -44 | Minor Trimming |
35x12.50R22 | 22x10 | 8x170 | -25 | Minor Trimming |
35x12.50R22 | 22x10 | 8x170 | -24 | Minor Trimming |
35x12.50R22 | 22x10 | 8x170 | -19 | Minor Trimming |
35x12.50R22 | 22x10 | 8x170 | -18 | Minor Trimming |
35x12.50R22 | 22x12 | 8x170 | -44 | Minor Trimming |
