5 INCH LIFT KIT CHEVY/GMC SUV 1500 2WD/4WD (2007-2014)


Price:
Sale price$1,099.95

Description

OVERVIEW

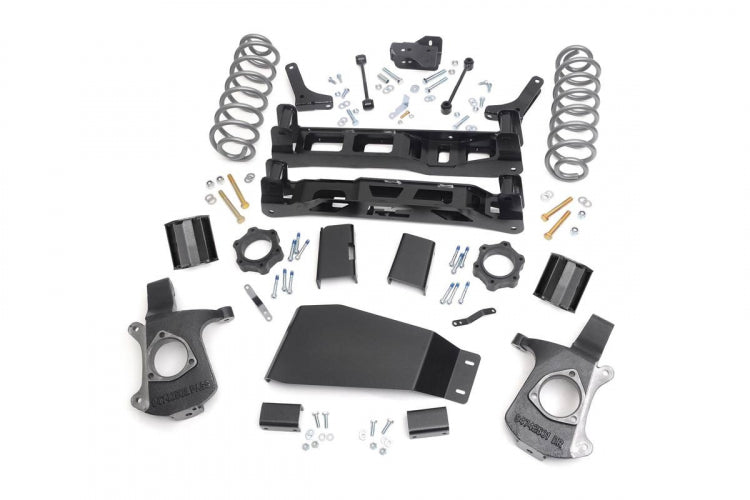

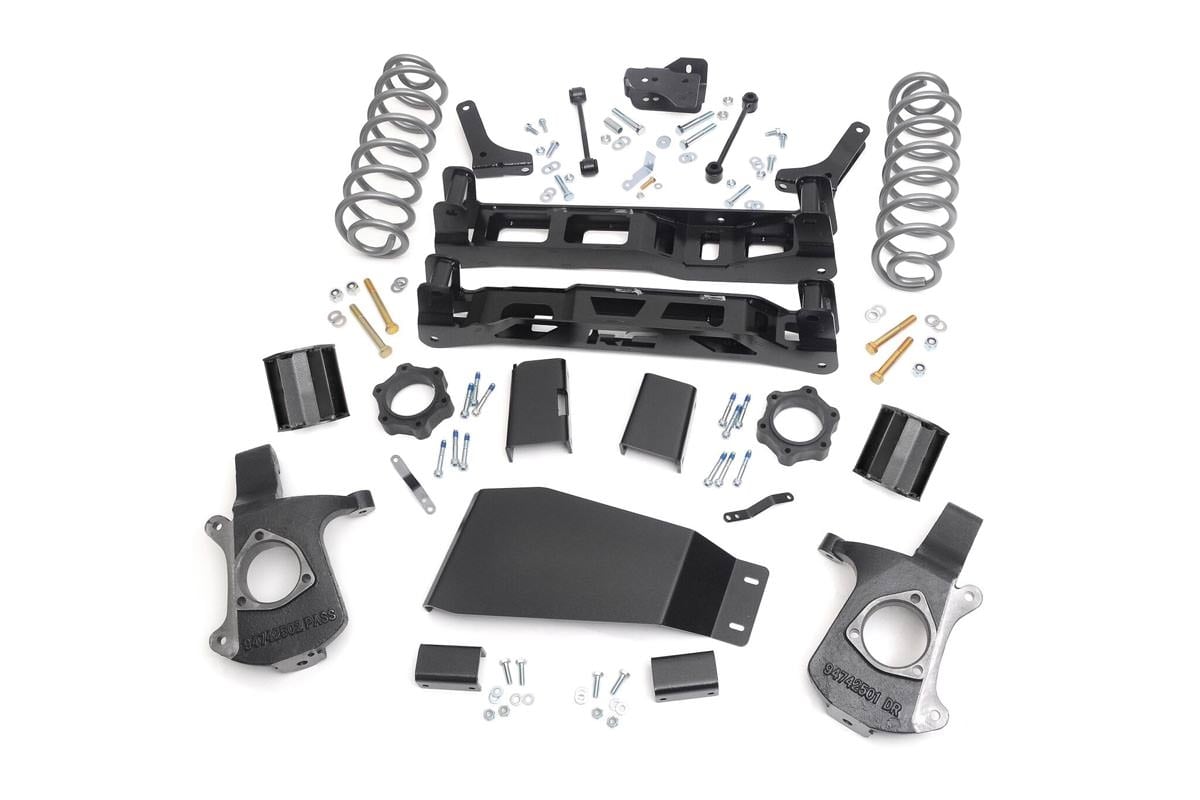

This all-inclusive kit ships with everything you need to get going and hit the mudholes. Featuring a set of beefy lifted knuckles and 1/4in thick steel front and rear high-clearance crossmembers, this kit offers plenty of muscle to handle hazards both on and off-road.

A set of Lifted Coil Springs and Upper Strut Spacers provide plenty of ride height - enough to run up to a 33in tire on our 5in option, or a 35in tire on our 7.5in option. Both kits feature sway-bar links, shock extensions, brakeline brackets, a rough and tumble lower skid plate, and Grade 8 Hardware.

Included sway-bar drop brackets and differential drop brackets help keep vehicle components properly aligned after lifting, providing a factory-like ride while boasting an aggressive stance.


FEATURES

  • Unmatched ground clearance from high clearance crossmember design.
  • 100% precision laser cut materials used in latest computer aided design process.
  • No strut disassembly or strut compressor required for installation.
  • Requires no modification to the stock differential mounts, drivetrain or exhaust.
  • Provides highly sought level stance when complete.

SPECIFICATIONS

  • Brand: Rough Country
  • Est. Install Time: 8-10 hours

NOTES - IMPORTANT

  • Does NOT fit Auto Ride or Auto Leveling models.
  • Does NOT fit models with electric steering.
  • Does NOT fit AWD models.
  • Minor cutting and drilling is required.
  • 18in or larger wheels are required.
  • Please view instructions for complete information on proper tire/wheel combinations.

VEHICLE FITMENT

YEARS DRIVE MAKE MODEL
2007-2014 2WD Chevy Suburban 1500
2007-2014 4WD Chevy Suburban 1500
2007-2014 2WD Chevy Tahoe
2007-2014 4WD Chevy Tahoe
2007-2014 2WD GMC Yukon
2007-2014 4WD GMC Yukon
2007-2014 2WD GMC Yukon XL 1500
2007-2014 4WD GMC Yukon XL 1500


RECOMMENDED TIRES & WHEELS

TIRE WHEEL BOLT PATTERN OFFSET NOTE
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
33x12.50R18 18x8.5 6x5.5 +0 -
33x12.50R18 18x8.5 6x5.5 +1 -
33x12.50R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +0 -
33x12.50R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +1 -
305/65R18 18x9 6x5.5 +12 -
33x12.50R18 18x9 6x5.5 +18 Minor Trimming
305/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +19 -
33x12.50R18 18x9 6x5.5 +20 Minor Trimming
285/65R18 18x9 6x5.5 +20 -
33x12.50R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +0 -
295/60R20 20x9 6x5.5 +0 Minor Trimming
33x12.50R20 20x9 6x5.5 +1 -
305/55R20 20x9 6x5.5 +1 -
295/60R20 20x9 6x5.5 +1 Minor Trimming
305/55R20 20x9 6x5.5 +12 -
33x12.50R20 20x9 6x5.5 +18 Minor Trimming
305/55R20 20x9 6x5.5 +18 -
295/60R20 20x9 6x5.5 +18 Minor Trimming
33x12.50R20 20x9 6x5.5 +20 Minor Trimming
305/55R20 20x9 6x5.5 +20 -
295/60R20 20x9 6x5.5 +20 Minor Trimming
33x12.50R20 20x10 6x5.5 -19 Minor Trimming
305/55R20 20x10 6x5.5 -19 Minor Trimming
295/60R20 20x10 6x5.5 -19 Trimming Required
33x12.50R20 20x10 6x5.5 -18 Minor Trimming
305/55R20 20x10 6x5.5 -18 Minor Trimming
295/60R20 20x10 6x5.5 -18 Trimming Required
33x12.50R22 22x10 6x5.5 -19 Minor Trimming
