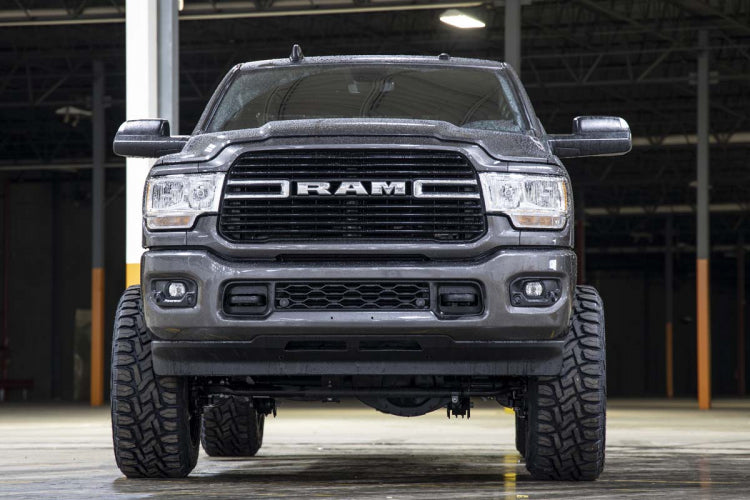

5 INCH LIFT KIT RAM 2500 4WD (2019-2023)


Price:
Sale price$1,399.95

Description

OVERVIEW

Compliment your RAM 2500's aggressive, good looks with Rough Country's new 5-inch Lift Kit with lifted coil springs. New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!

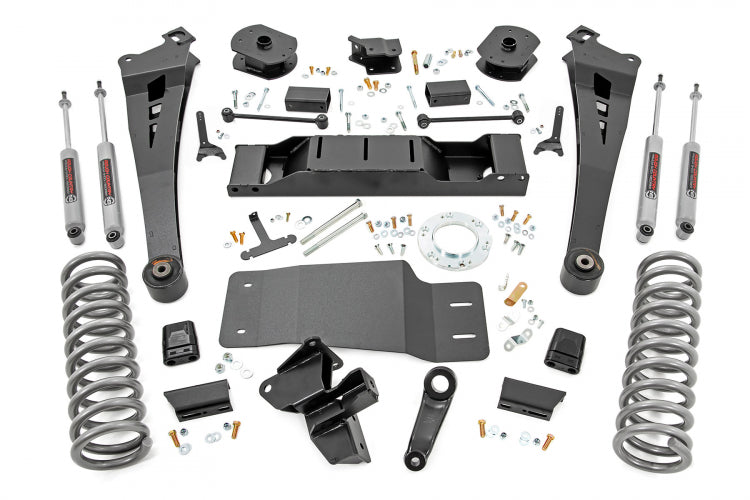

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, durable rubber bushings for maximum vibration absorption. This kit also includes a skid plate and a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram. This kit also features an option upgrade for Dual Rate front and rear coils - Dual Rate coil springs combine a relatively low initial spring rate, designed to absorb minor undulations and increase grip with a secondary higher spring rate to improve handling and driveability.

FEATURES

  • Increased ground clearance.
  • Track bar bracket keeps the front axle properly centered.
  • Fits air ride and non-air ride models.
  • Radius Arms offer a more factory-like angle and feature a durable, durable rubber Bushing for maximum vibration absorption.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

SPECIFICATIONS

  • Brand: Rough Country
  • Est. Install Time: 7-9 hours

NOTES - IMPORTANT

  • Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
  • Does NOT fit 'Power Wagon' models
  • Does NOT models with a manual transfer case.
  • ONLY fits Diesel models
  • Requires minor cutting.
  • On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration

VEHICLE FITMENT

YEARS DRIVE MAKE MODEL
2019-2023 4WD Ram 2500


RECOMMENDED TIRES & WHEELS

TIRE WHEEL BOLT PATTERN OFFSET NOTE
37x12.50R17 17x8.5 8x6.5/8x165.1 +0 -
37x12.50R17 17x9 8x6.5/8x165.1 +0 -
37x12.50R20 20x9 8x6.5/8x165.1 +0 -
35x12.50R20 20x9 8x6.5/8x165.1 +0 -
37x12.50R20 20x9 8x6.5/8x165.1 +1 -
35x12.50R20 20x9 8x6.5/8x165.1 +1 -
37x12.50R20 20x10 8x6.5/8x165.1 -25 Minor Trimming
35x12.50R20 20x10 8x6.5/8x165.1 -25 -
37x12.50R20 20x10 8x6.5/8x165.1 -24 Minor Trimming
35x12.50R20 20x10 8x6.5/8x165.1 -24 -
37x12.50R20 20x10 8x6.5/8x165.1 -19 Minor Trimming
35x12.50R20 20x10 8x6.5/8x165.1 -19 -
37x12.50R20 20x10 8x6.5/8x165.1 -18 Minor Trimming
35x12.50R20 20x10 8x6.5/8x165.1 -18 -
37x12.50R20 20x12 8x6.5/8x165.1 -44 -
35x12.50R20 20x12 8x6.5/8x165.1 -44 Trimming Required
37x12.50R22 22x10 8x6.5/8x165.1 -25 Minor Trimming
35x12.50R22 22x10 8x6.5/8x165.1 -25 -
37x12.50R22 22x10 8x6.5/8x165.1 -24 Minor Trimming
35x12.50R22 22x10 8x6.5/8x165.1 -24 -
37x12.50R22 22x10 8x6.5/8x165.1 -19 Minor Trimming
35x12.50R22 22x10 8x6.5/8x165.1 -19 -
37x12.50R22 22x10 8x6.5/8x165.1 -18 Minor Trimming
35x12.50R22 22x10 8x6.5/8x165.1 -18 -
35x12.50R22 22x12 8x6.5/8x165.1 -44 Trimming Required
