6 INCH LIFT KIT FORD SUPER DUTY 4WD (2017-2022)


Price:
Sale price$1,049.95

Description

OVERVIEW

Take your truck to new heights with Rough Country's 6in Suspension Lift! This all-inclusive kit comes with everything you need for a total trasnformation of your truck. Run up to 37in tires while preserving the smooth, factory ride quality with this impressive upgrade.

When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Suspension Lift features a set of ultra-durable radius arms drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.

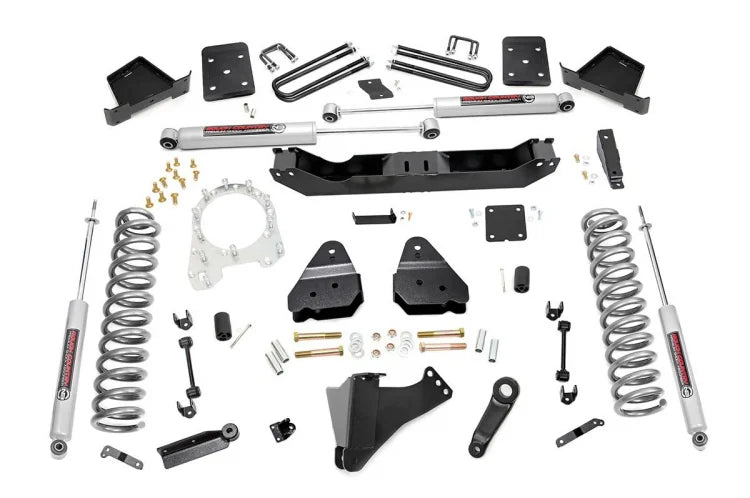

This kit includes a set of lifted coil springs and ultra-durable, fabricated anti-wrap rear blocks that prevent binding and axle wrap. Best of all, this kit comes with your choice of Rough Country’s N3, V2 Monotube, or Vertex Adjustable Reservoir shocks! Includes Rough Country’s Lifetime Replacement Warranty.

FEATURES

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

OPTIONAL PREMIUM N3 SHOCKS

  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty
  •

    OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty
  •

    OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty
  •

    NOTES - IMPORTANT

    • Models equipped with a 10-speed transmission must remove dial pin.
    • Does NOT fit gas engine models.
    • Does NOT fit dually models.
    • Does NOT fit manual shift transfer cases
    • Does NOT work on models equipped with Tremor Factory Trim Package

    VEHICLE FITMENT

    YEARS DRIVE MAKE MODEL
    2017-2022 4WD Ford F-250 Super Duty
    2017-2022 4WD Ford F-350 Super Duty


    RECOMMENDED TIRES & WHEELS

    TIRE WHEEL BOLT PATTERN OFFSET NOTE
    37x12.50R17 17x9 8x170 -12 -
    37x12.50R17 17x9 8x170 +0 -
    37x12.50R17 17x9 8x170 +1 -
    37x12.50R18 18x9 8x170 -12 -
    37x12.50R18 18x9 8x170 +0 -
    37x12.50R18 18x9 8x170 +1 -
    37x12.50R20 20x9 8x170 -12 -
    37x12.50R20 20x9 8x170 +0 -
    37x12.50R20 20x9 8x170 +1 -
    37x12.50R20 20x10 8x170 -25 -
    37x12.50R20 20x10 8x170 -24 -
    37x12.50R20 20x10 8x170 -19 -
    35x12.50R20 20x10 8x170 -19 -
    37x12.50R20 20x10 8x170 -18 -
    35x12.50R20 20x10 8x170 -18 -
    37x12.50R20 20x12 8x170 -44 Trimming Required
    35x12.50R20 20x12 8x170 -44 Trimming Required
    37x12.50R22 22x9 8x170 -12 -
    37x12.50R22 22x9 8x170 +0 -
    37x12.50R22 22x9 8x170 +1 -
    37x12.50R22 22x10 8x170 -25 -
    37x12.50R22 22x10 8x170 -24 -
    37x12.50R22 22x10 8x170 -19 -
    35x12.50R22 22x10 8x170 -19 -
    35x12.50R22 22x12 8x170 -44 Trimming Required
