Description

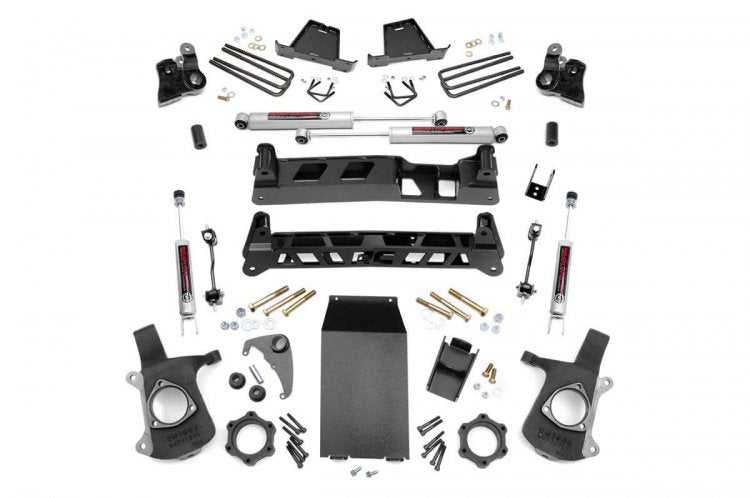

We've raised the bar on our 6" NTD suspension for '99 - '06 Chevy/GMC 1500 pickups! Gain greater clearance, better handling, and the cleanest looking 6-inch lift available! A set of lifted front knuckles and 6.25in rear fabricated, anti-wrap blocks allow your 1500 to run up to 35in tires, while a full set of high clearance drop crossmembers, differential drop brackets and non torsion bar drop brackets keep everything tucked, hidden, and at optimum angles
FEATURES
- Torsion bars stay in factory location
- Redesigned for easier installation
- Maintains factory ride quality
- Applicable with Auto Trac equipped models
- Unmatched ground clearance
- Axles maintain factory position and angle
- No drivetrain or exhaust modifications required
- Designed to reuse factory compression travel stops
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
NOTES - IMPORTANT
- Will fit 2007 "Classic" models.
- Does NOT fit HD models.
- Does NOT fit 1999 "Classic" models.
- Frame bracket modification required
- Differential modification required
- Models equipped with a factory painted bumpers will require trimming to valance and bumper.
- New fabricated lift block replaces your factory equipped block.
- If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger.
- Torsion bar unloading tool required for installation.
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
---|---|---|---|
1999-2006 | 4WD | Chevy | Silverado 1500 |
2007-2007 | 4WD | Chevy | Silverado 1500 Classic |
1999-2006 | 4WD | GMC | Sierra 1500 |
2007-2007 | 4WD | GMC | Sierra 1500 Classic |
RECOMMENDED TIRES & WHEELS
TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
---|---|---|---|---|
315/75R16 | 16x8 | 6x5.5 | -6 | - |
35x12.50-17 | 17x9 | 6x5.5 | +0 | - |
35x12.50-17 | 17x9 | 6x5.5 | +1 | - |
35x12.50-17 | 17x9 | 6x5.5 | -12 | - |
35x12.50-18 | 18x9 | 6x5.5 | +0 | - |
35x12.50-18 | 18x9 | 6x5.5 | +1 | - |
35x12.50-18 | 18x9 | 6x5.5 | -12 | - |
35x12.50-20 | 20x9 | 6x5.5 | +0 | - |
35x12.50-20 | 20x9 | 6x5.5 | +1 | - |
35x12.50-20 | 20x9 | 6x5.5 | -12 | - |
