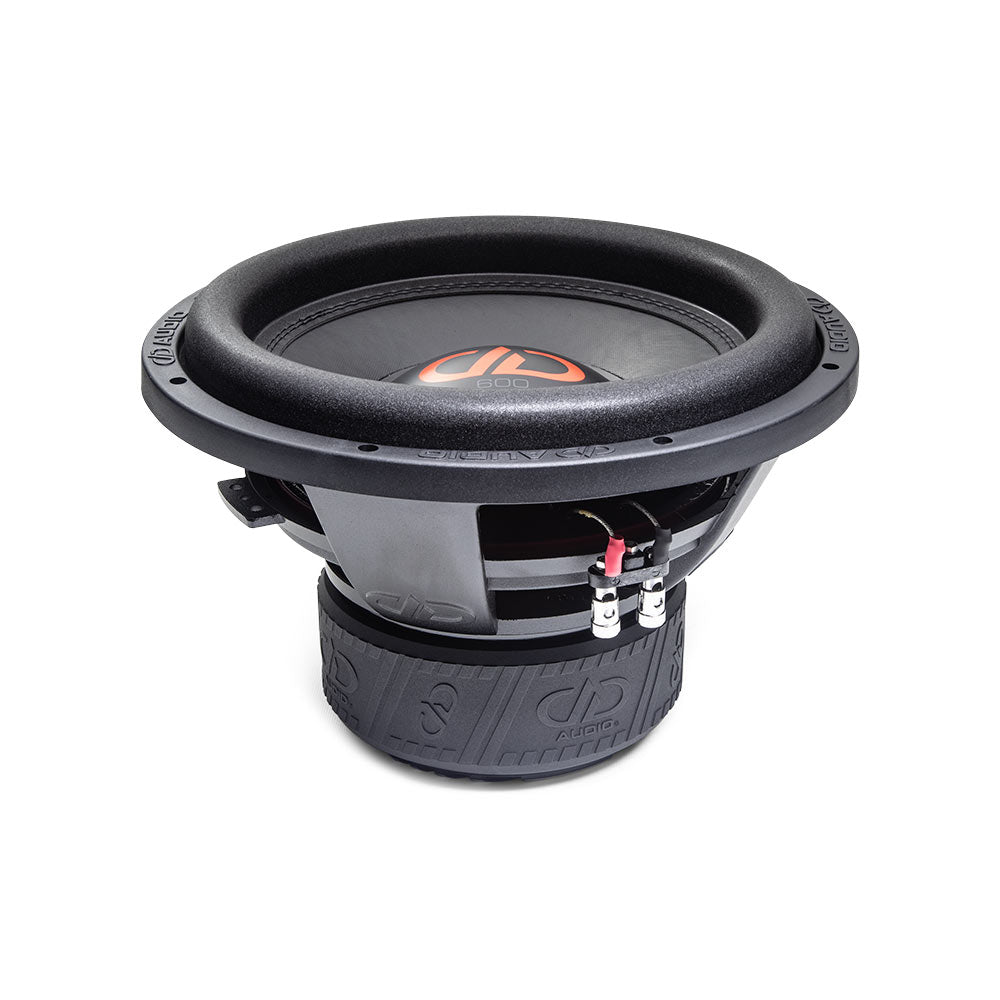

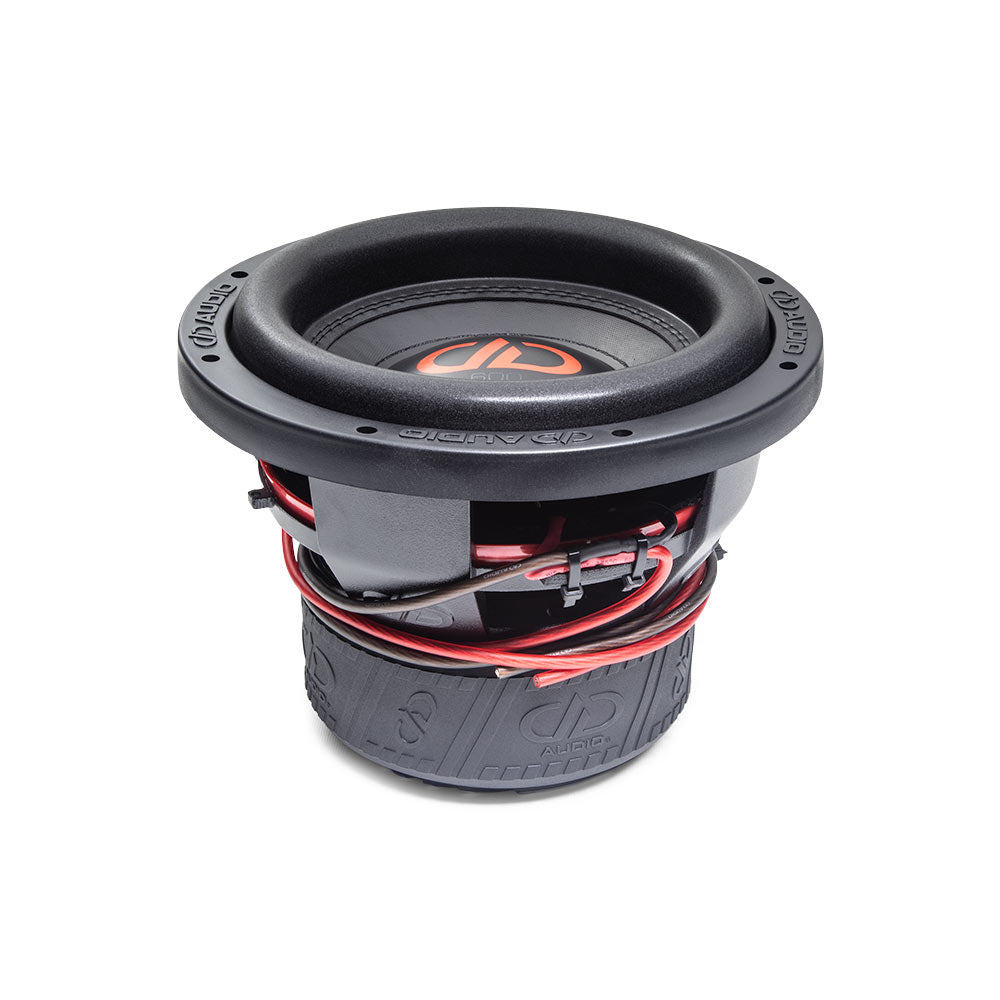

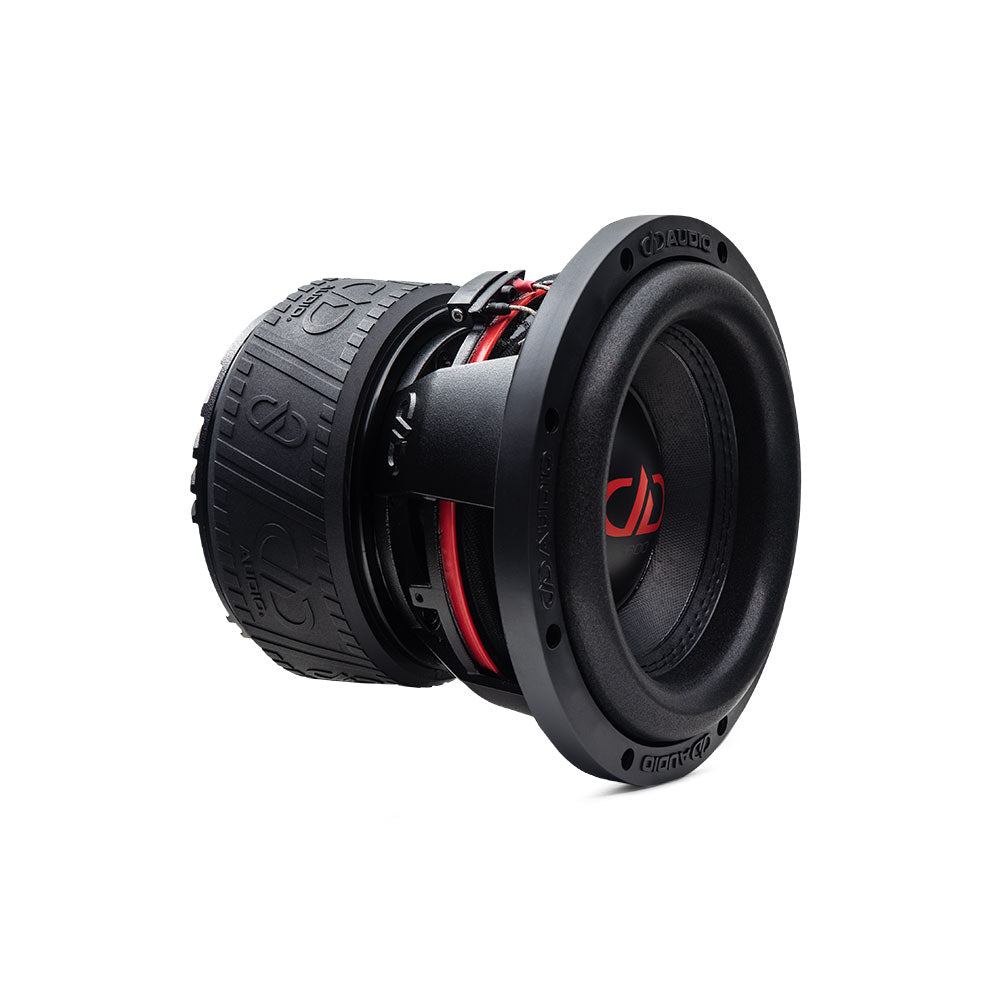

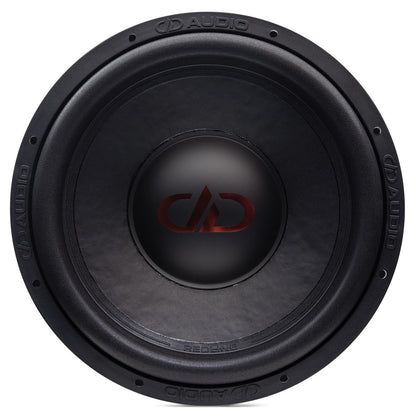

DD Audio 600 SERIES PERFORMANCE AND STYLE

$329.00 USD

Sale Sold out

Shipping calculated at checkout.

The 600 Series offers a wide range of DD AUDIO’s most popular Power Tuned Subwoofers designed for remarkable power handling, to be a serious bassheads daily driver.

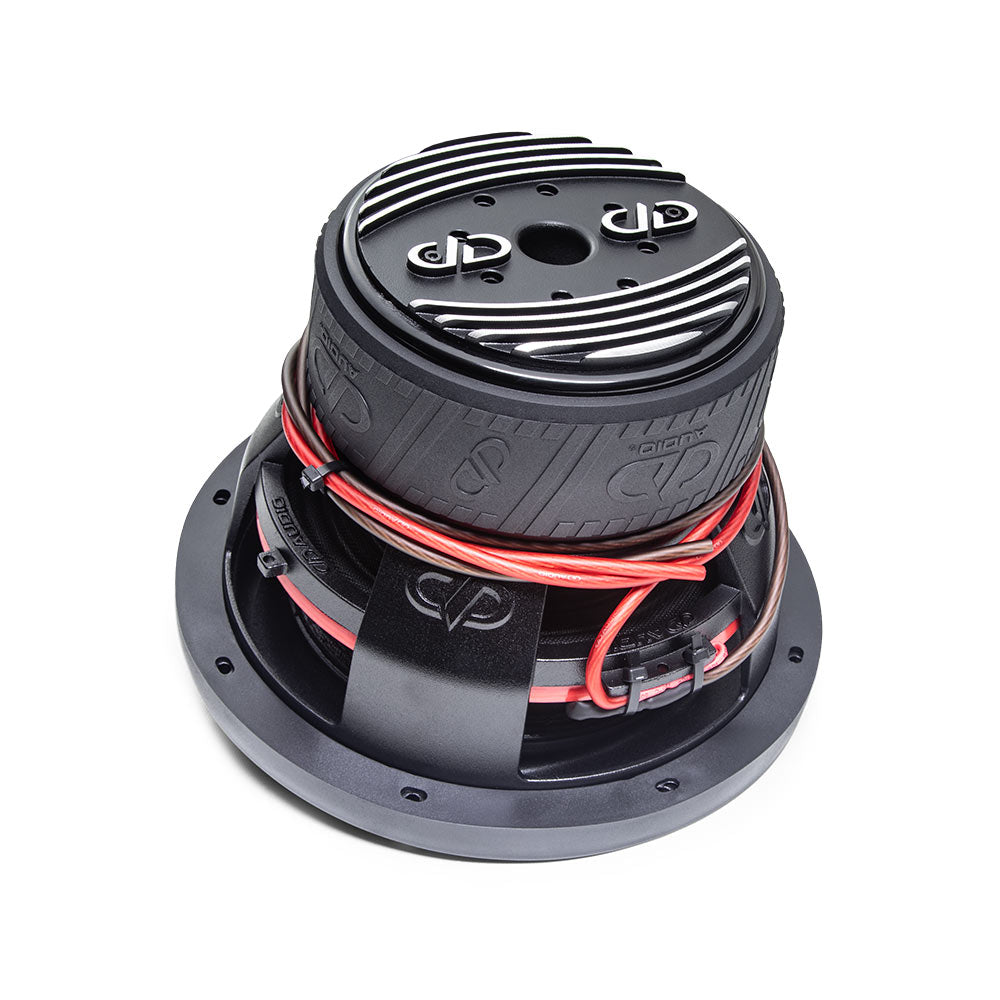

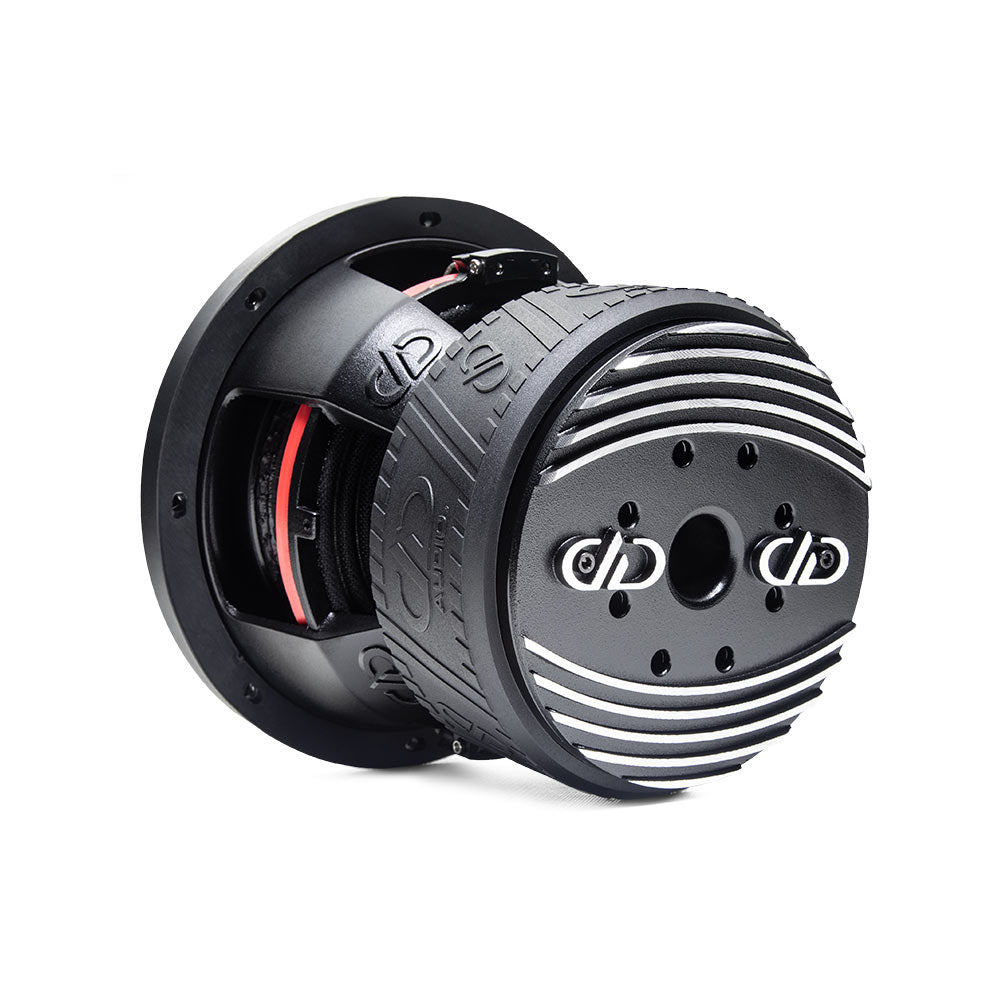

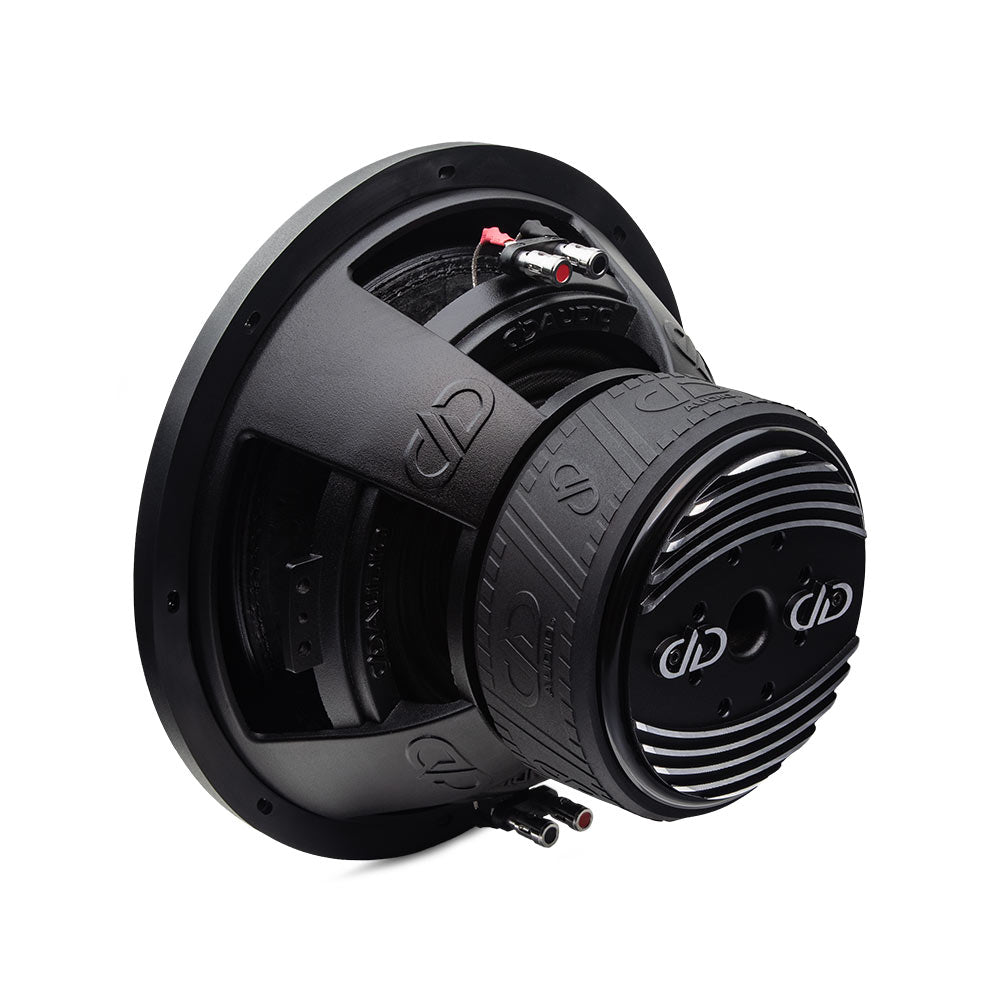

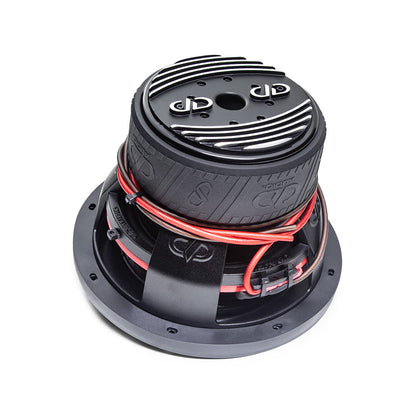

Precision engineered, thermal cooling enhancements, from the proven Free Flow Cooling System on all models to the cutting edge aluminum heat sinks on the new “f” revision, let you play longer, while the tall surrounds, high-temp voice coils, and high excursion spiders let you play harder.

All of them incorporate the very best component parts and the newest models feature the latest in state of the art design to ensure maximum efficiency for a power range that serves the daily driver, but borders on competition grade performance. They are not for the faint of bass.

Features

Free Flow Cooling System
High-temp Voice Coil
Triple Layer Spider System
Unique glass fiber and natural pulp cone
Extended pole piece
Cast aluminum basket

General Specifications

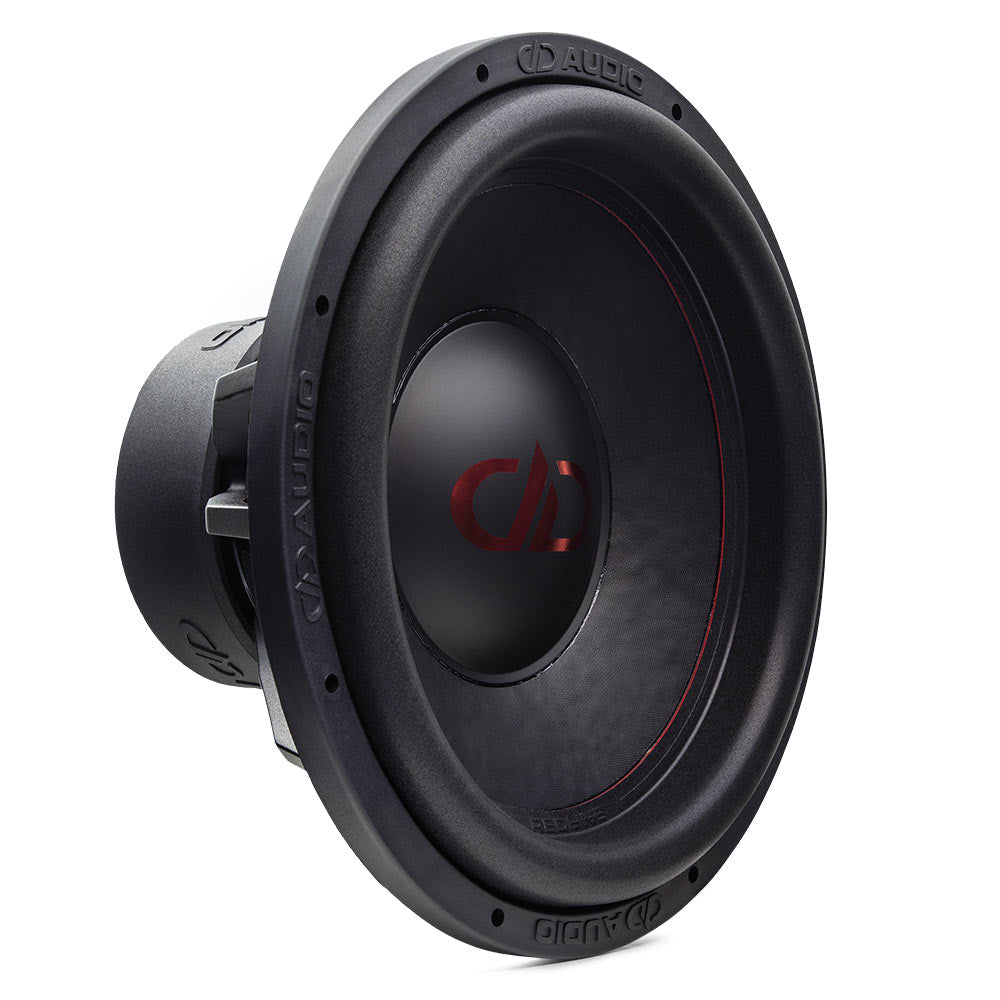

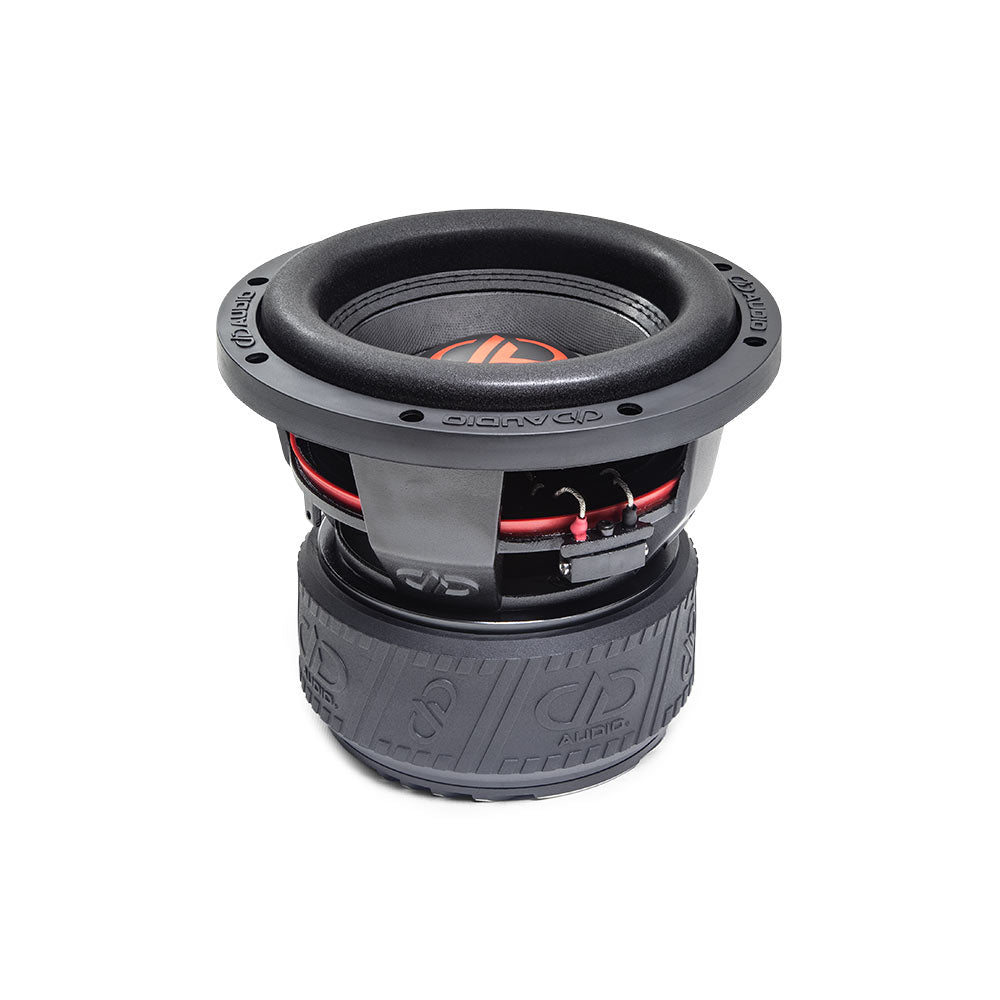

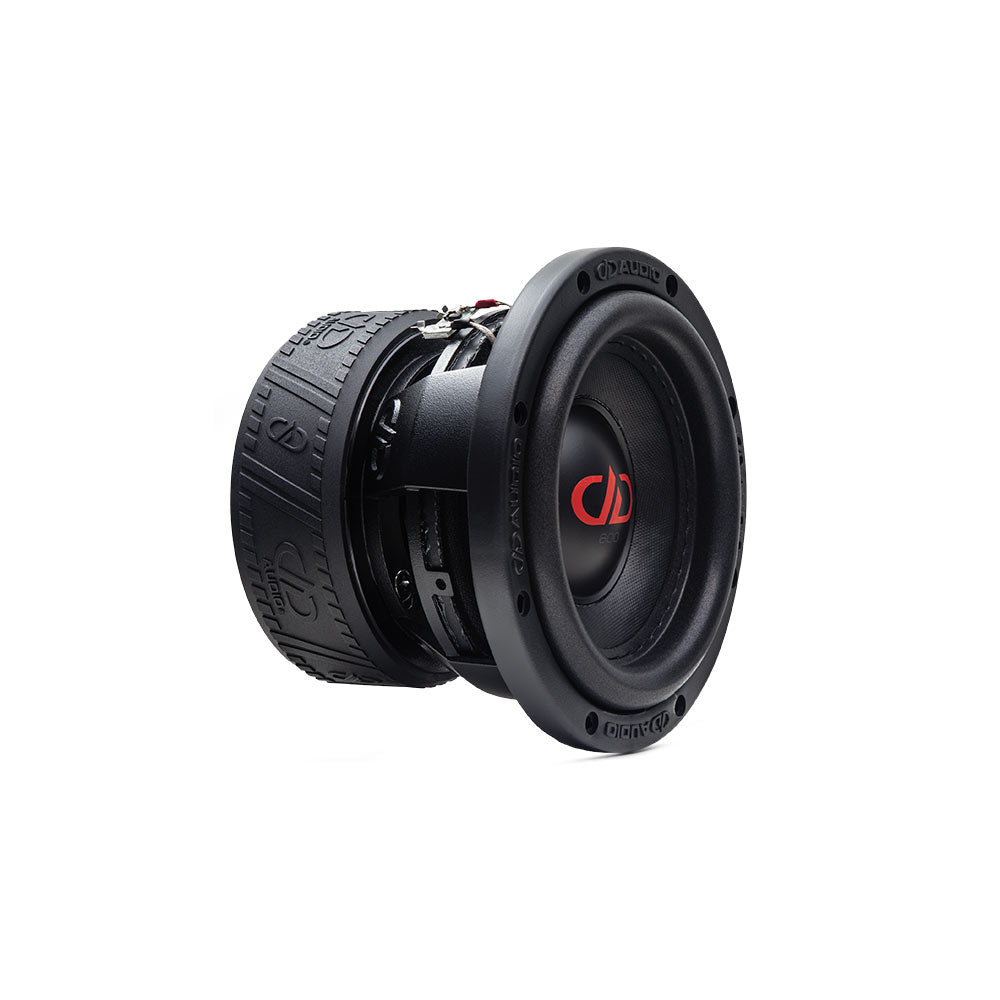

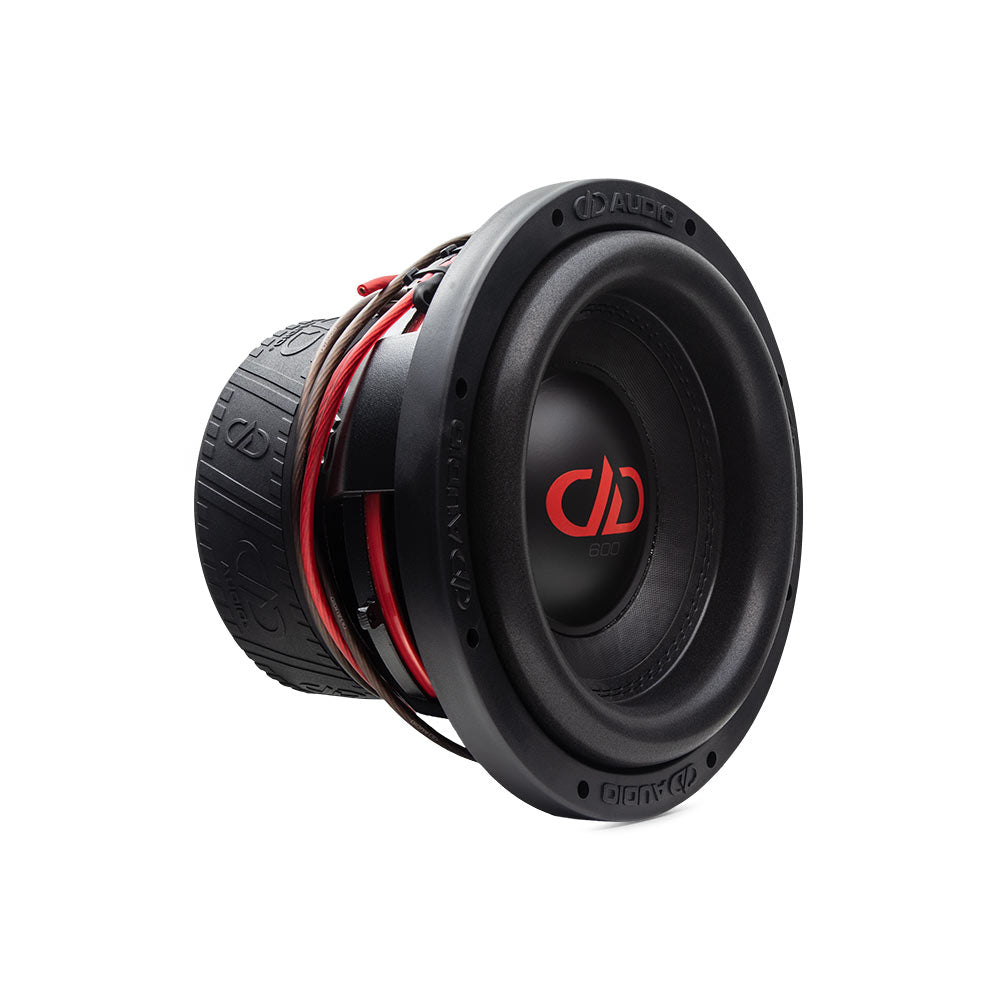

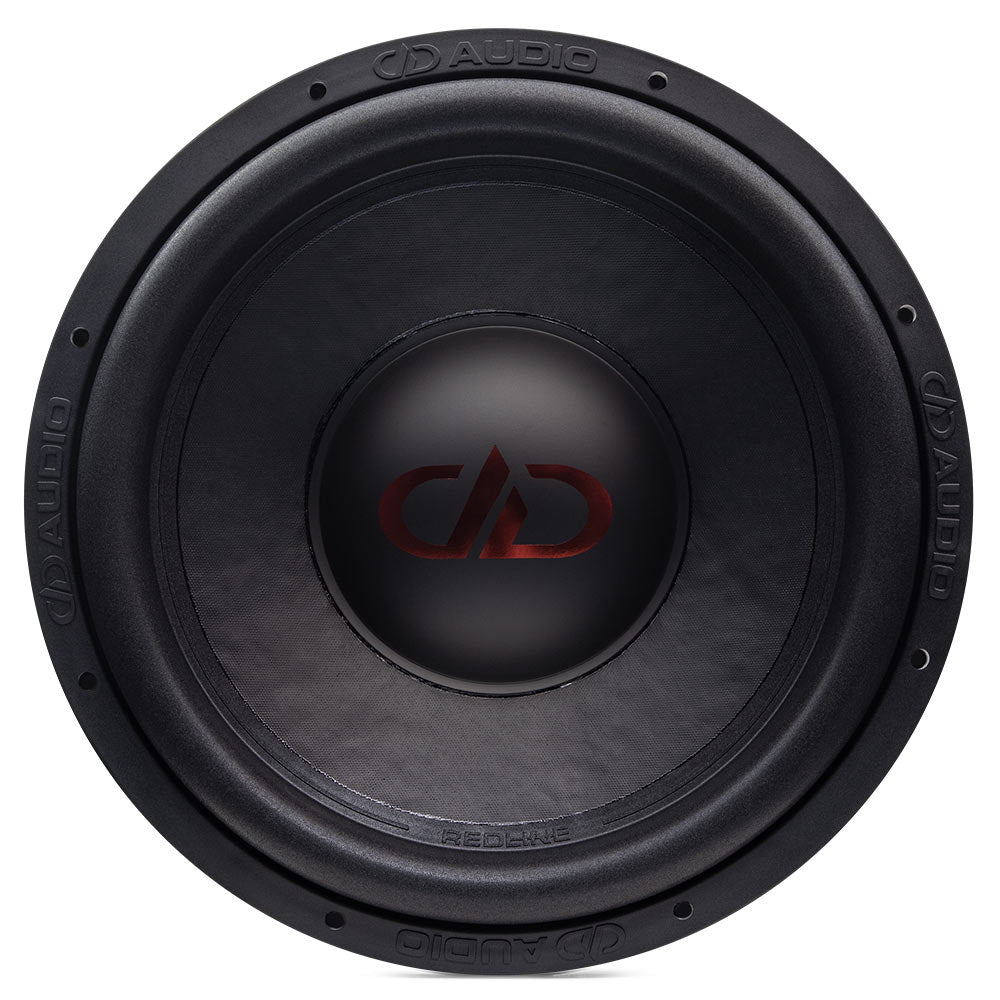

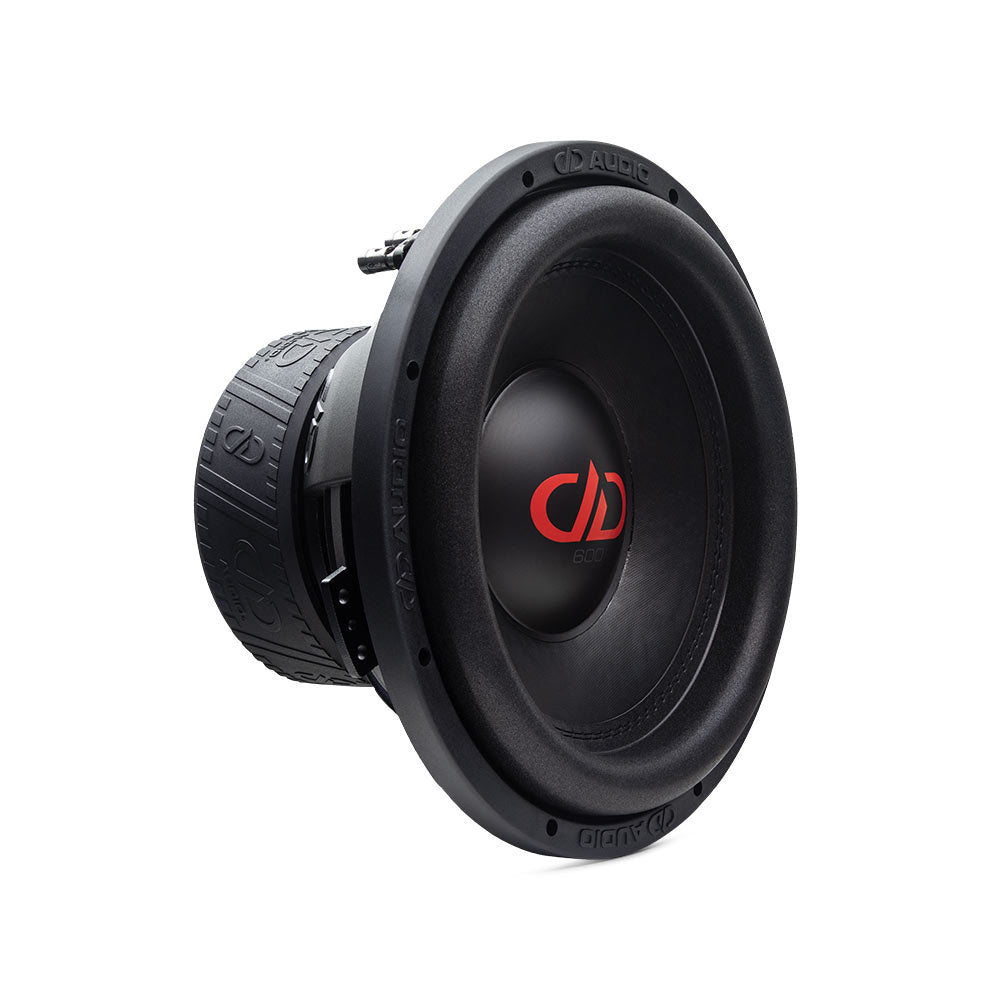

606D	608F	610F	612F	615E
Speaker Size (In):	6.5	8	10	12	15
Speaker Size (MM):	N/A	N/A	N/A	N/A	381
Watts RMS:	600	1000	1000	1000	500 - 800
Watts Peak:	1800	3000	3000	3000	2400
Impedance:	D2 / D4	D2 / D4	D2 / D4	D2 / D4	D2 / D4
VCD (In):	2	2.5	2.5	2.5	2.5
Piston Diameter (In):	5.375	6.5	8.5	10.25	13
Fs (Hz):	43.74	38	34	31	33.6
Qms:	4.907	7.76	5.047	5.06	4.327
Qes:	0.558	0.5	0.454	0.4432	0.524
Qts:	0.501	0.46	0.416	0.4075	0.468
Vas (Liters):	4.395	7.4	33.91	81.16	82.36
Xmech (In):	N/A	N/A	N/A	N/A	2.6
Xmech (MM):	56	60	60	60	N/A
Xmax (MM):	9	18	22	22	15
Frame OD (In):	7	8.3	10.625	12.875	15.25
Frame OD w/ Gasket (In):	7 1/8	8.5	10.75	13	15.5
Mounting Diameter (In):	5 7/8	7.37	9.39	11.5	13.81
Mounting Depth (In):	4 1/2	6.5	7.25	7.375	7.8
Motor Diameter (In):	5 1/2	6.5	7	7	7
Motor Depth (In):	2	3.25	3.375	3.375	3
Magnet Weight (Oz):	N/A	N/A	N/A	N/A	170
Woofer Displacement (CuFt):	0.04	0.07	0.08	0.1	0.11
Sealed Enclosure (CuFt):	0.25 - 0.5	0.4 - 0.8	N/A	N/A	N/A
Ported Enclosure (CuFt):	0.25 - 0.75	0.75 - 1.25	1.25 - 1.75	1.75 - 2.75	3.0 - 6.0
Shipping Weight (Lbs):	10.5	20	N/A	N/A	30
Price (USD):	189 each	299 each	329 each	349 each	349 each
