Description
The VO-W700s are drivers made to satisfy an underappreciated bandwidth between the bottom end of a midrange and the heavy lows of the subwoofer, striking a balance of clarity and power that puts them in a class of their own. With a rich pedigree tracing back to the 1990’s era of Digital Designs 9000 Series subwoofers, and a sleek undemanding profile, these woofers have been made for applications where depth is limited, but expectations are not.
The feature rich VO-W700 woofers are the ideal choice when the system design requires a higher crossover pointing to high output midranges, where normal subwoofer rolloff leaves a frequency gap. Best of all, the combination of high motor force, tight control, and compact cast frame, allow the VO-W700s to be used in small vented box designs, taking advantage of vehicle acoustic loading, allowing you to enjoy the low end punch with a higher frequency attack, from a myriad of locations in the most cramped of cabin spaces.
Available in the 10 inch VO-W710 and 12 inch VO-W712.
Features
-
7.4” Diameter, Double Magnet Motor
-
Multi-Vent Free Flow Cooling System
-
Aluminum Shorting Ring
-
3” High-Temp Voice Coil
-
Excursion Optimized Compact Cast Frame
-
High Density Surround
-
Weather Resistant Pressed Cone
-
7.5” Dual Layer Cloth Spider
-
1200 Watt RMS Power Handling
-
Embossed DDesign Magnet Boot
General Specifications

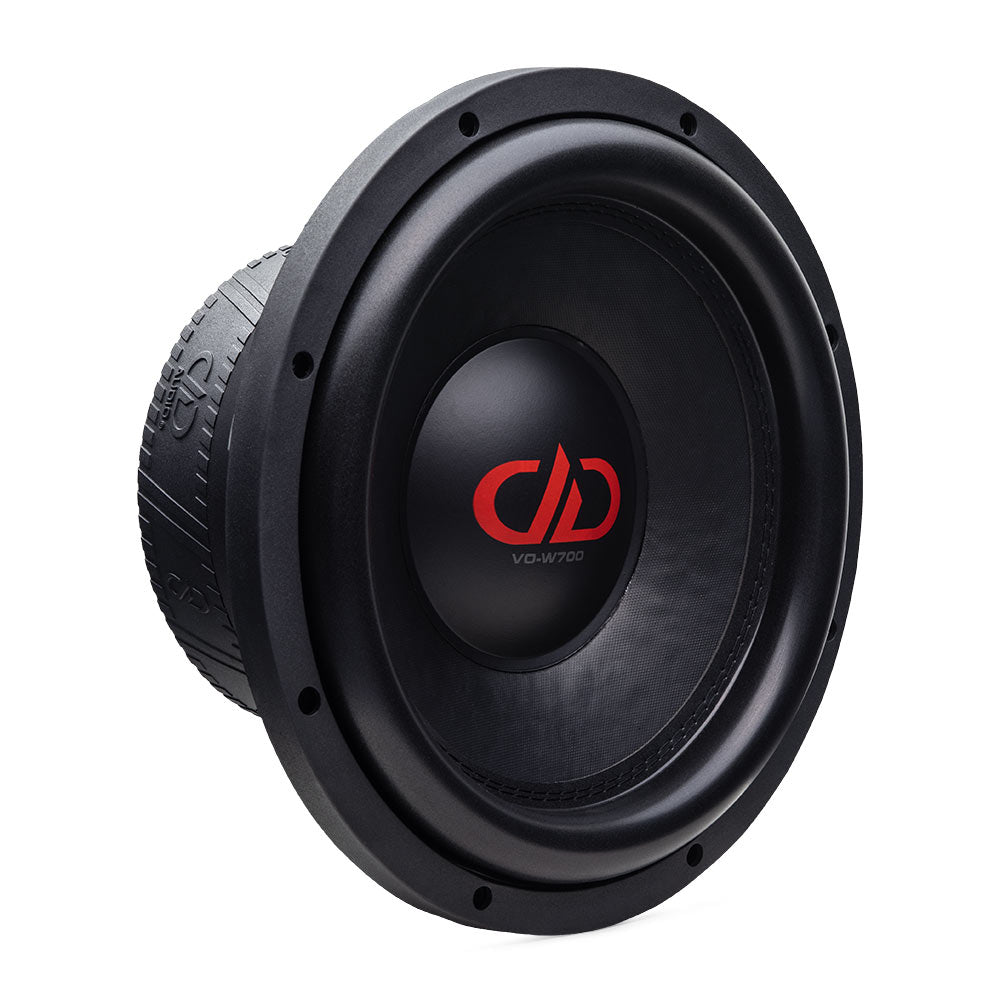

VO-W712: 1200W – 12 inch PA Woofer
Speaker Size (In): | 12 |
Watts RMS: | 1200 |
Impedance: | D2 / D4 |
VCD (In): | 3 |
Piston Diameter (MM): | 247.7 |
Frequency Response (Hz): | 35 - 2k |
Fs (Hz): | 40.85 |
Qms: | 5.807 |
Qes: | 0.517 |
Qts: | 0.475 |
Vas (Liters): | 17.57 |
BL (TM): | 30 |
Xmech (MM): | 30 |
Xmax (MM): | 12 |
Frame OD w/Gasket (In): | 12.625 |
Mounting Diameter (In): | 11 3/8 |
Mounting Diameter (MM): | 286 |
Mounting Depth (In): | 5.125 |
Mounting Depth (MM): | 130 |
Price (USD): | 359 each |
