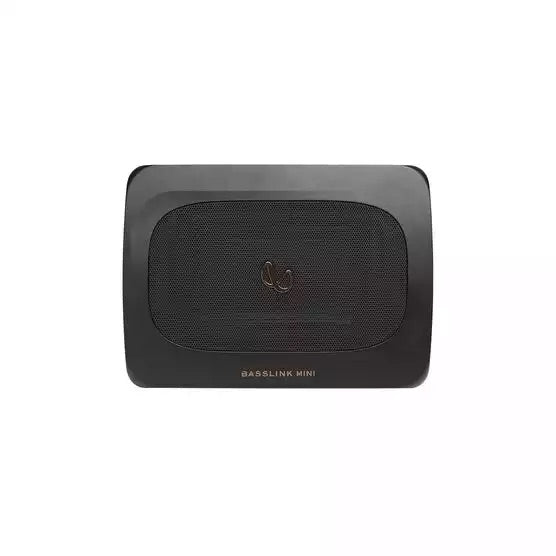

Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System

Features

Big Bass, Small Space

Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance

The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design

The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control

Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

Driver Complement

6"x8" Subwoofer

Amplifier Power

100Wrms; 200W Max

Frequency Response

30Hz – 150Hz

Fuse

15A

Maximum Current Draw

13 A

Quiescent Current Draw

<600 mA

Input Sensitivity

0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input

Crossover Frequency

50 Hz – 150 Hz

Crossover Slope

12 dB/octave

Bass Boost

0dB to + 12dB @ 50Hz

Dimensions (L x W x H)

11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)

Weight

8.22 lbs (3.73kg)
