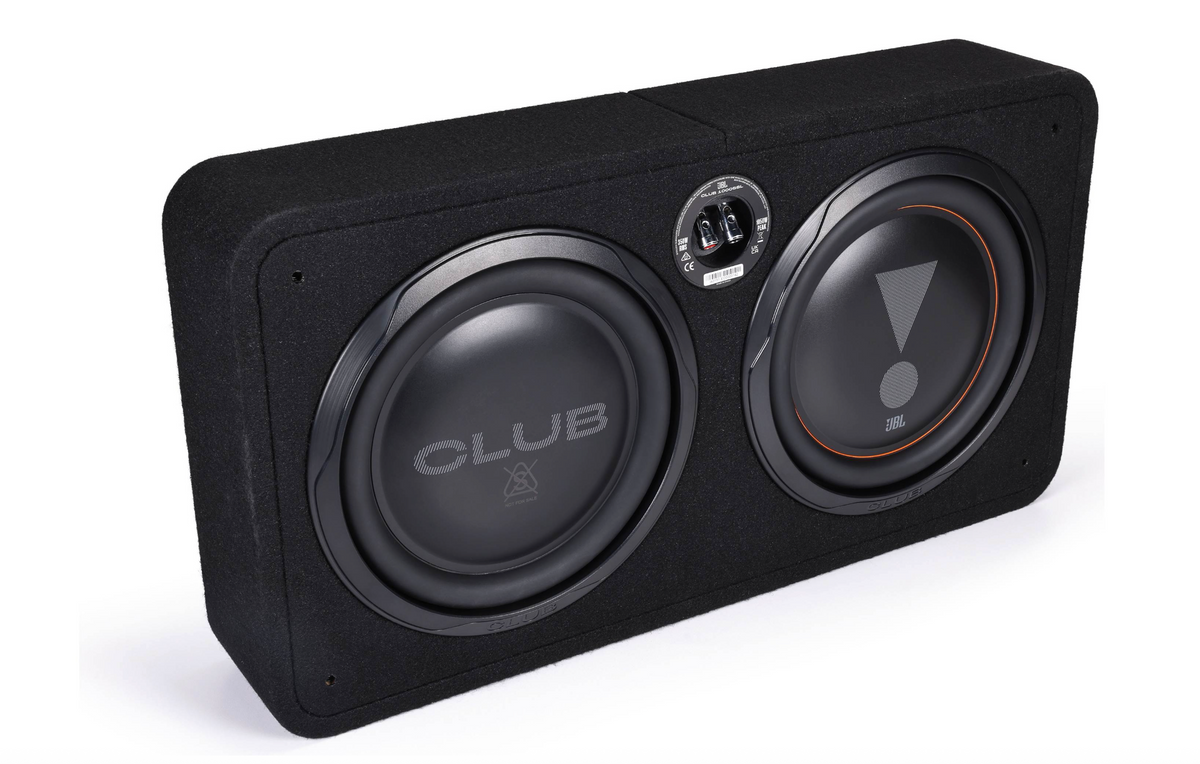

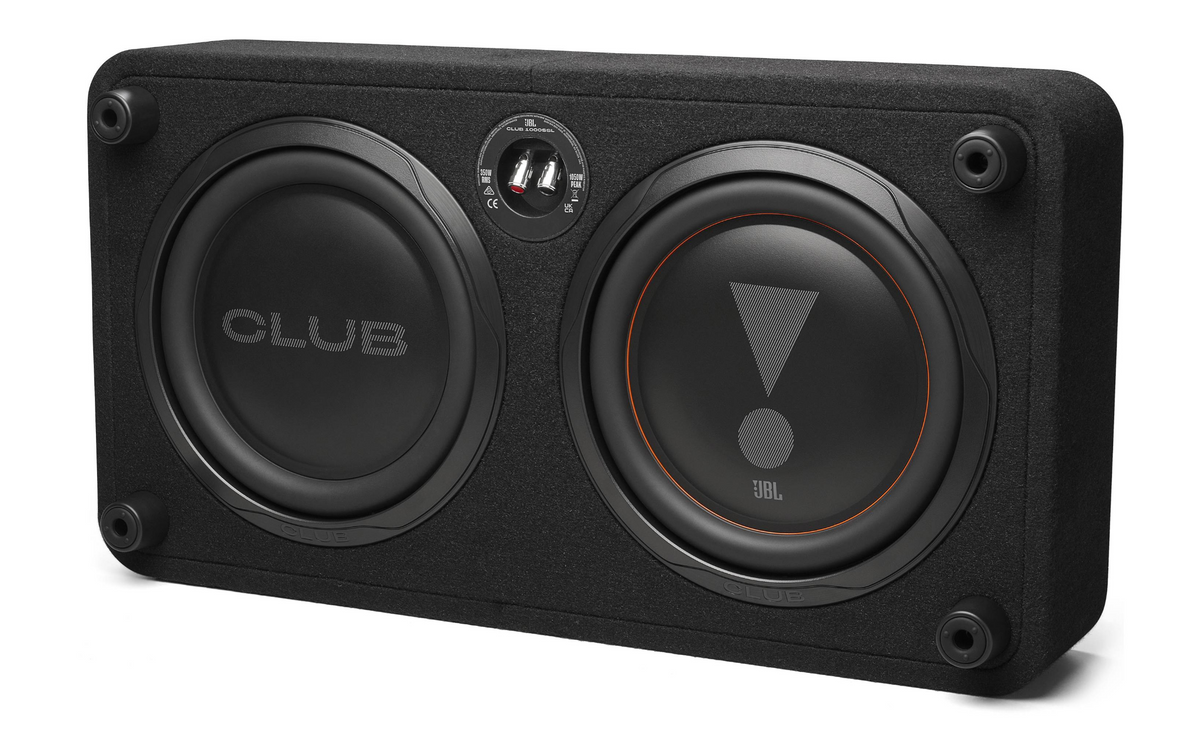

JBL CLUB1000SSLSINGLE 10” Thin Subwoofer Enclosure with Passive Radiator

JBL’s Club 10” (250mm) and 12” (300mm) shallow subwoofer enclosure have been engineered using a sealed enclosure with down-firing Club shallow subwoofer and passive radiator. This approach delivers tight, accurate bass performance while taking up minimal space for installation into a broader variety of vehicle types and locations. The enclosure is designed with removable feet which allows for flexible placement direction to get best performance and optimize space per vehicle type. A removable logo badge is included allow you to put anywhere you like. Enclosure’s sturdy medium-density fiberboard construction and rugged black carpet covering allows it to resist stacking weight and take a beating. A metal bracket set also provided if customer would like to fix it tight in a vehicle.

Technical Specifications
Subwoofer: 10” (250mm) Aluminum Driver
Power Handling: 350W RMS, 1050W peak
Sensitivity (1W/1m): 82.5dB
Frequency Response (-6dB): 35Hz – 400Hz
Nominal Impedance: 2 ohms
Voice Coil Diameter: 2” (50mm)
Enclosure dimensions: 334mm D x 630mm W x 115mm H/13-1/8” D x 24-7/8” W x 4-1/2” H
Enclosure materials: 3/4” (18mm) MDF with black carpet covering

What’s in the Box
1x Subwoofer Enclosure

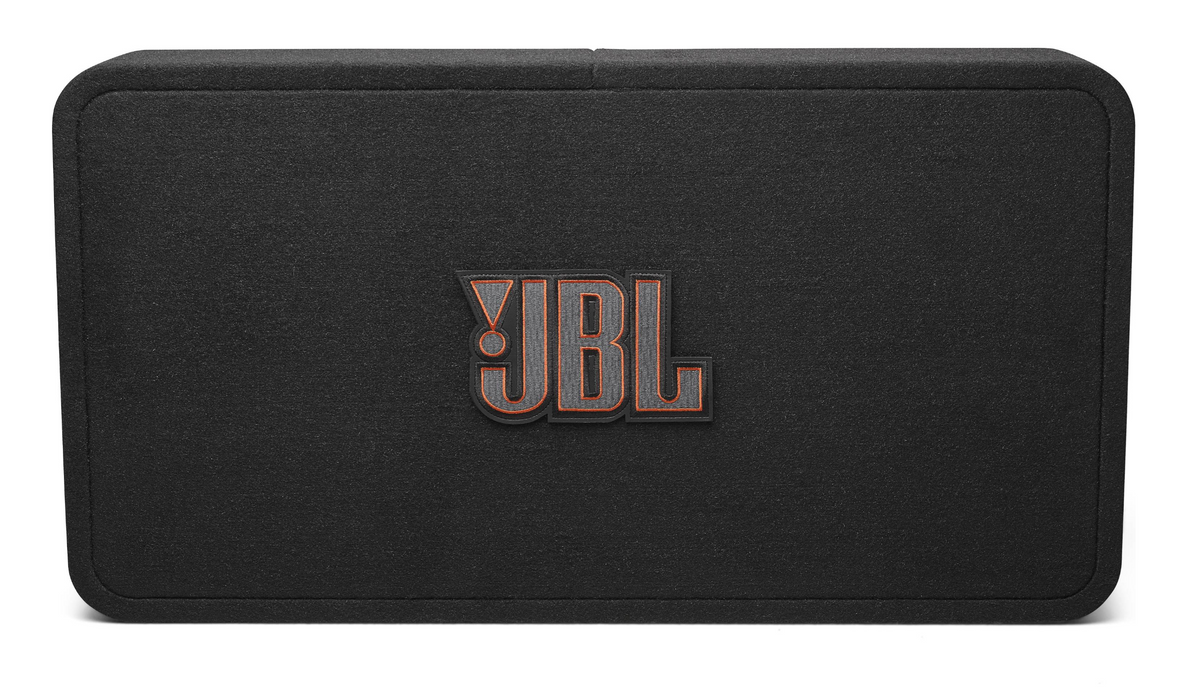

1x JBL Logo Badge
4x Plastic Feet
4x Screw Washer
4x Hexalobular Socket Head M6*25 Screws
1x Quick Start Guide
2x Steel Plate + 8x M5*15 Screws
