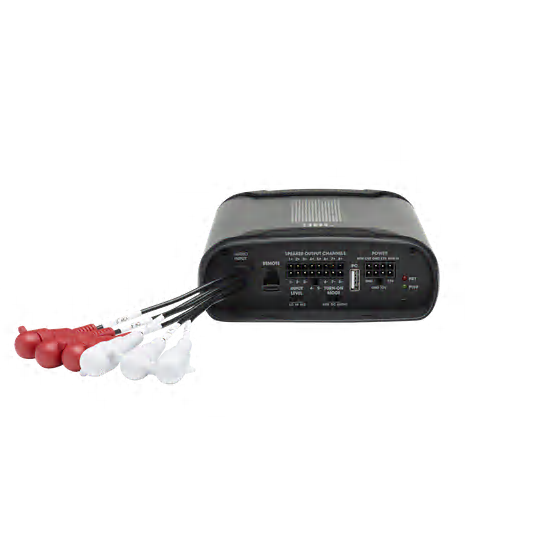

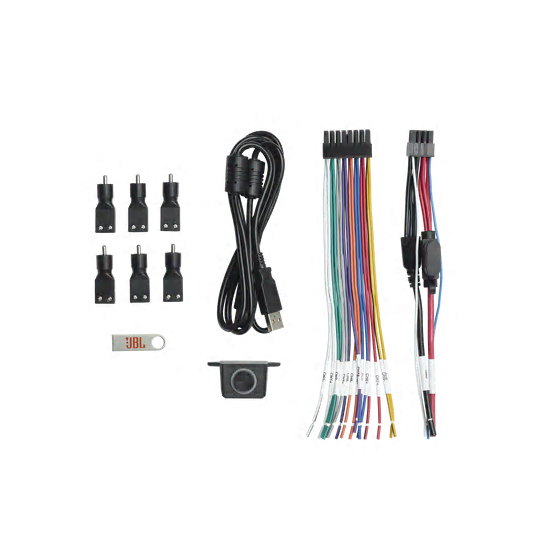

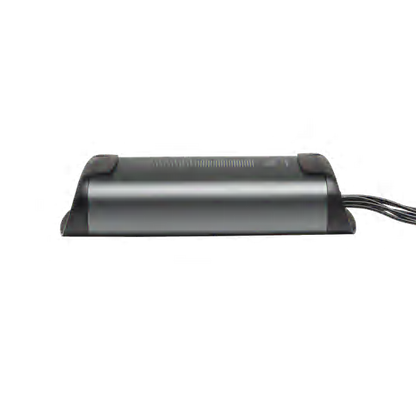

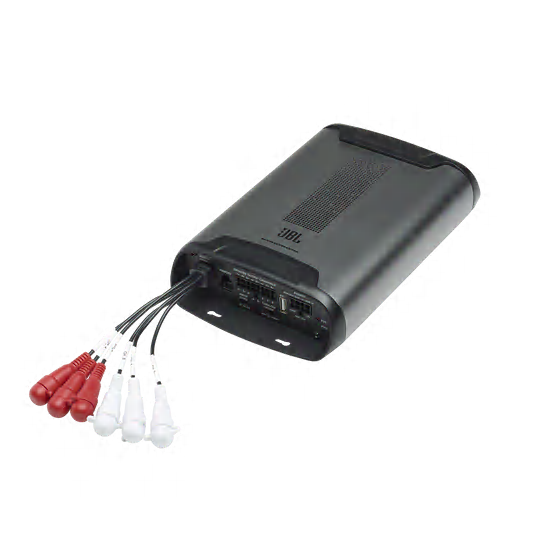

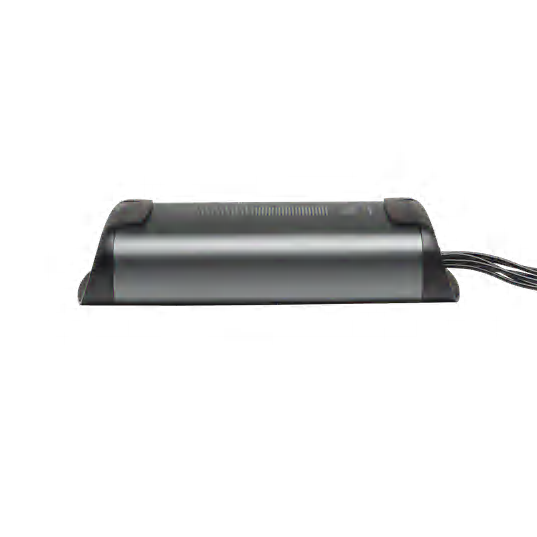

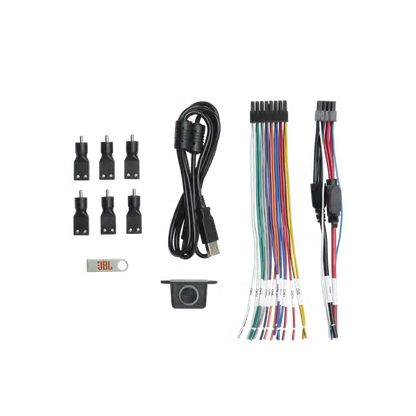

JBL DSP Amplifier DSP4086

Sale price$379.98


8-channel Class D Amplifier Design with Digital Signal Processing

JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy to use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.

General Specifications

Max Power1000W peak
RMS Power Output @ 2Ω60W x 8, <1% THD+N
RMS Power Output @ 4Ω40W x 8, <1% THD+N
Variable crossovers with hi-pass, lo-pass, band-pass capability & adjustable 0-to-48dB slopesYes
Selectable EQ adjustmentParametric or Graphic
Selectable 12V/Signal Sense/DC Offset turn-on modes, with 12V remote outputYes
Frequency Response 10Hz to 22kHz @ -3dBYes
Signal-to-Noise Ratio>90dB @ 4Ω
Subwoofer Level Control -30dB to +6dBYes
Fuse Rating40A
Operating Voltage8V to 16V
