Description

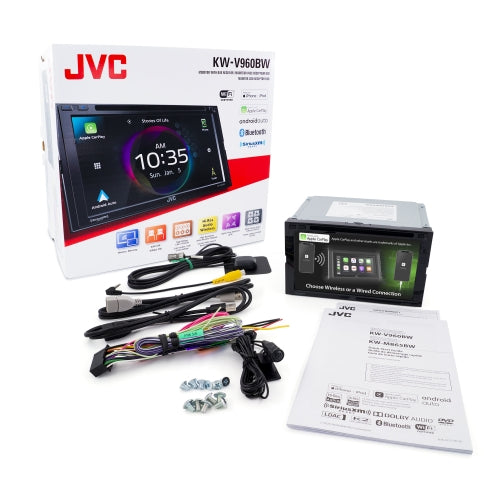

Multimedia Receiver featuring 6.8" Clear Resistive Touch Monitor / Wireless Apple CarPlay / Wireless Android Auto /4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ
Multimedia Receiver featuring 6.8" Clear Resistive Touch Monitor / Wireless Apple CarPlay / Wireless Android Auto /4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ
Dynamic GUI
Various information including time, photos, album art images, or iDatalink Maestro and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.
4-Camera Input
Enable users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.
Live Wallpaper
Synchronize background visual and color with music.
Clear Resistive Touch Panel Display
The clear resistive touch panel with high transparency and high luminance provides bright images with vivid colors.
High-Resolution Audio Playback
You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Sound Response
Cancels time distortion to create clearer sound during the playback of compressed audio files.
KW-V960BW
Monitor
- Screen Size: 6.8"W VGA Screen
- Touch Panel: Clear Resistive
- Gesture Touch Control: Yes
- Customizable GUI: Yes
- Key Illumination Color: Blue
- Dimmer: Yes
- Multilingual Display: Yes[4]
- Wallpaper Capture: Yes
- Live Wallpaper: Yes
Media Playback
- MP3 Compatible with Tag: CD / DVD / USB
- WMA Compatible with Tag: CD / DVD / USB
- WAV Compatible with Tag: CD / DVD / USB
- AAC Compatible with Tag: CD / DVD / USB
- FLAC Compatible with Tag: CD / DVD / USB( Up to 192kHz/24bit )
- H.264 Compatible: CD / DVD / USB
- WMV Compatible: CD / DVD / USB
- MPEG 1/2 Compatible: CD / DVD / USB
- MPEG 4 Compatible: CD / DVD / USB
- AVI/MKV Compatible: CD / DVD / USB
- JPEG File Playback: CD / DVD / USB
- PNG File Playback: CD / DVD / USB
- BMP File Playback: CD / DVD / USB
CD Player
- CD-R/RW Compatible: Yes
DVD Player
- DVD-R/-RW, +R/+RW Compatible: Yes
- Video CD Playback: Yes
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Version 5.0, Wired-Mic included)
- Hands Free Call: Yes (HFP1.7 Wideband Speech)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Supported Audio Formats: AAC / SBC
- 5 BT-Audio Connection: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- Alphabetical Search for Phone Book: Yes
- Auto Pairing for iPhone/Android:Yes
Wi-Fi Control
- Built-in Wi-Fi: Yes
Android Control
- Android Auto[2]: Yes (via Wi-Fi or USB)
- Mirroring for Android: Yes (via Wi-Fi or USB*) *via USB : Need mirroring App
- Android Music Playback: Yes (via Bluetooth(R))
iPod/iPhone Control
- CarPlay[3]: Yes (via Wi-Fi or USB)
- Mirroring for iPhone: Yes (via USB) *Need mirroring App
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
USB
- USB Port: x 2 (High Speed)
- Position: Rear
- USB Power Supply: Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
Radio Tuner
- SiriusXM Ready: Yes
- Radio Broadcast Data System (RBDS): Yes
- Preset Stations: 20(FM:15ch, AM:5ch)
- Auto Memory Entry Yes
FM
- Frequency Range: 87.9 - 107.9MHz
AM
- Frequency Range: 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (8Preset + 4user)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X'over: Yes
- High-Resolution Audio: Yes
- K2 Technology: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
- Time Alignment: Yes
- Dual-Zone Function: Yes
Inputs and Outputs
- AV Input: mini jack (AV-IN or CAM4 switchable)
- Video Out: RCA
- Rear view camera Input: Yes
- Front view camera Input: Yes
- 3rd Camera Input: Yes
- Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance: 5.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control: Yes
General
- iDatalink Maestro Ready: Yes
- Remote Control Application: Yes
- Back Up Memory: Yes
Face Type
- Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
Dimensions (W x H x D)
- Installation Size: 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)
- Weight: 4.63 lbs. (2.1kg)
- Unit weight in individual package: 2.8kg
