Description

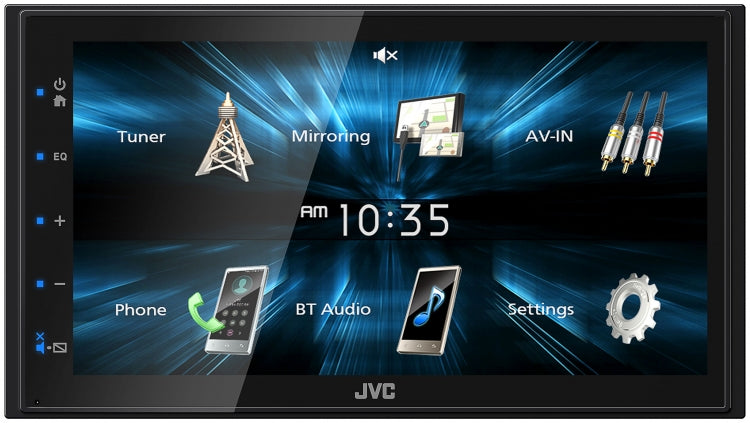

Digital Media Receiver featuring 6.8" WVGA Capacitive Monitor / USB Mirroring for Android Phones / Bluetooth / 13-Band EQ / Short Chassis
USB Mirroring for Android
Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.6 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.5 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
KW-M150BT
Monitor
- Screen Size: 6.8" Wide VGA
- Touch Panel: Capacitive with Printing
- Key Illumination Color: Blue
- Multilingual Display: Yes[2]
Media Playback
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB
- H.264 Compatible: USB
- MPEG 1/2 Compatible: USB
- MPEG 4 Compatible: USB
- AVI/MKV Compatible: USB
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Version 4.2, Wired-Mic included)
- Hands Free Call: Yes (HFP1.6 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
Android Control
- Mirroring for Android: Yes (via USB)
- Android Music Playback: Yes (via Bluetooth®)
iPod/iPhone Control
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth®)
USB
- USB Port: x1 (High Speed)
- Position: Rear
- USB Power Supply: Yes (1.0A)
Radio Tuner
- Radio Broadcast Data System (RBDS): Yes
- Preset Stations: 30 (6ch x 5band)
- Auto Memory Entry: Yes
FM
- Frequency Range: 87.9-107.9MHz
AM
- Frequency Range: 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear): 45Wx4
- Full Bandwidth Power (Front & Rear): 16W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (7 Preset + 3 User)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- Time Alignment: Yes
Inputs and Outputs
- AV Input: RCA x 1
- Video Out: RCA
- Rear view camera Input: Yes
- Line Output Terminals: 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
- Pre-output Level/Impedance: 2V / 10k ohms
- Subwoofer Output with Level/Frequency Control: Yes
General
- Face Type: Fixed

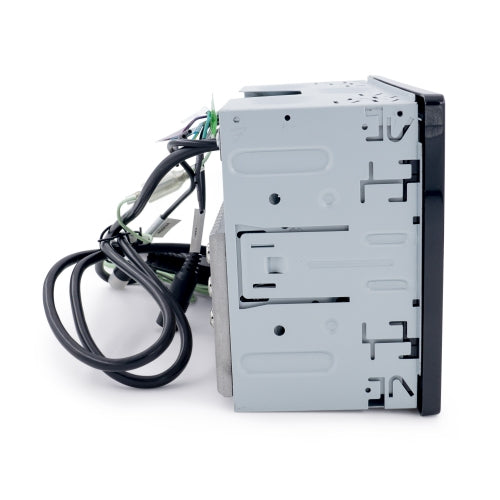

- Short Chassis: Yes
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
- Learning Direct OEM Remote: Yes
- ISO Connector: Yes
Dimensions (W x H x D):
-
Installation Size: 7-3/16" x 4-7/16" x 3" (182 x 112 x 75 mm)
Weight:
- Unit weight (including sleeve and trim plate): 2.7 lbs. (1.2 kg)
- Unit weight in individual package: 3.75 lbs. (1.7 kg)
