Description
Digital Media Receiver featuring 6.8-inch Capacitive Touch Control Monitor (6.8" WVGA) / Apple CarPlay / Android Auto / USB Mirroring for Android Phones/ iDatalink Maestro Ready / HDMI Input / Bluetooth® / 13-Band EQ / Short Chassis

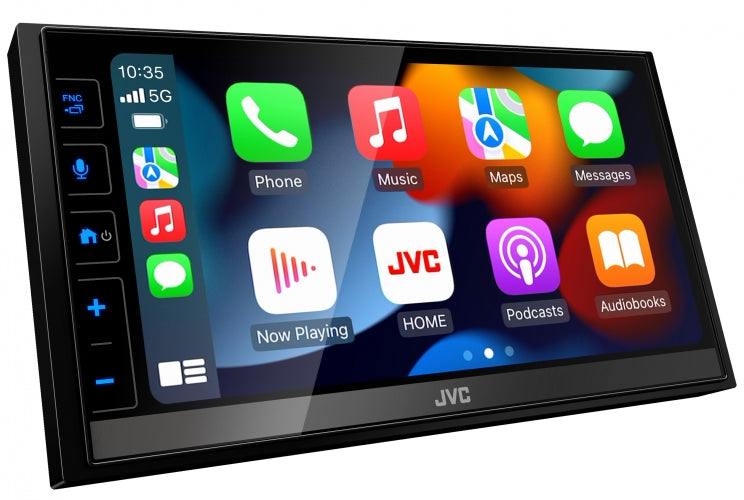

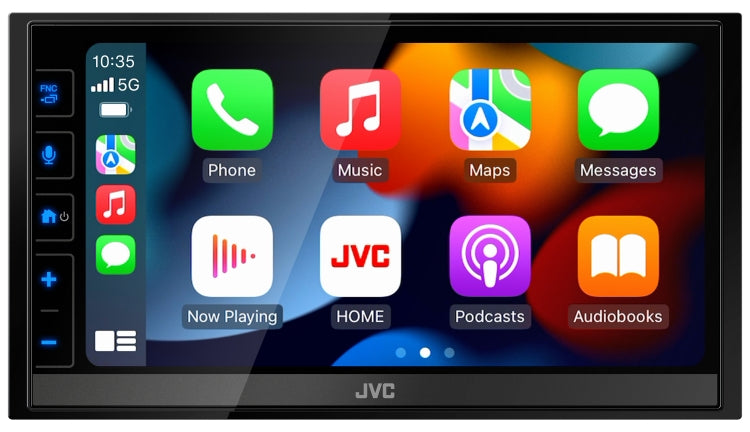

Apple CarPlay® – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

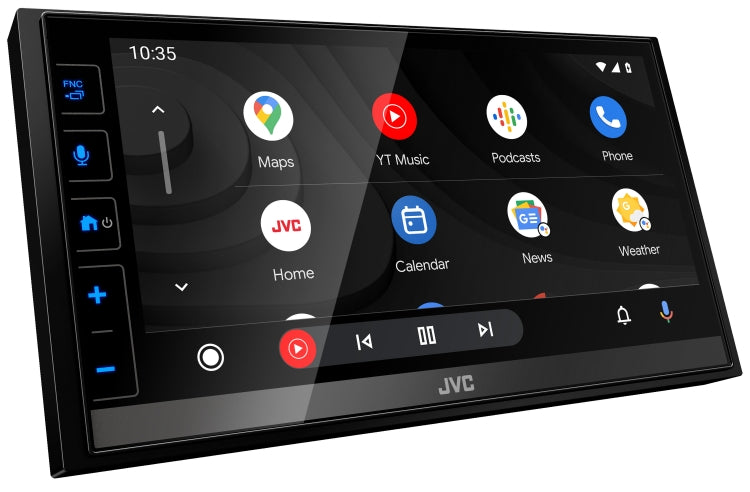

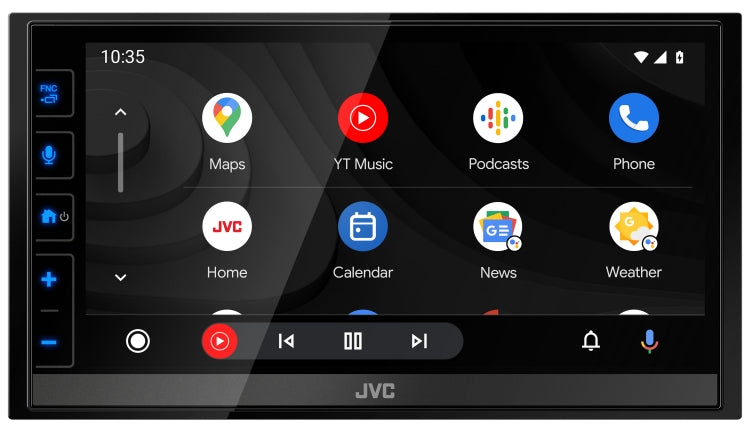

Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With larger touch targets, a simplified interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
Mirroring for Android Phone – Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
HDMI™ Mirroring for Smartphones
Display your smartphone screen on the receiverʼs display via an HDMI cable and third party adapter.
3-Camera Input
Enable users to add a reverse (rear facing) camera and an additional 2 front or blind-spot cameras, further enhancing driver safety and convenience.
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
KW-M780BT
Monitor
- Screen Size: 6.8"W VGA Screen
- Touch Panel: Capacitive
- Gesture Touch Control: Yes
- Customizable GUI: Yes
- Key Illumination Color: Variable
- Dimmer: Yes
- Multilingual Display: Yes[4]
- Wallpaper Capture: Yes
Media Playback
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB
- H.264 Compatible: USB
- WMV Compatible: USB
- MPEG 1/2 Compatible: USB
- MPEG 4 Compatible: USB
- MKV Compatible: USB
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Wired-Mic included)
- Hands Free Call: Yes (HFP1.8 Wideband Speech)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Supported Audio Formats: AAC / SBC
- 5 BT-Audio Connection: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- Alphabetical Search for Phone Book: Yes
- Auto Pairing for iPhone/Android: Yes (Android only)
Android Control
- Android Auto[2]: Yes (via USB)
- Mirroring for Android: Yes (via USB) *Need mirroring App
- Android Music Playback: Yes (via Bluetooth®)
iPod/iPhone Control
- CarPlay[3]: Yes (via USB)
- iPhone Music Playback: Yes (via USB (CarPlay) or Bluetooth (AVRCP))

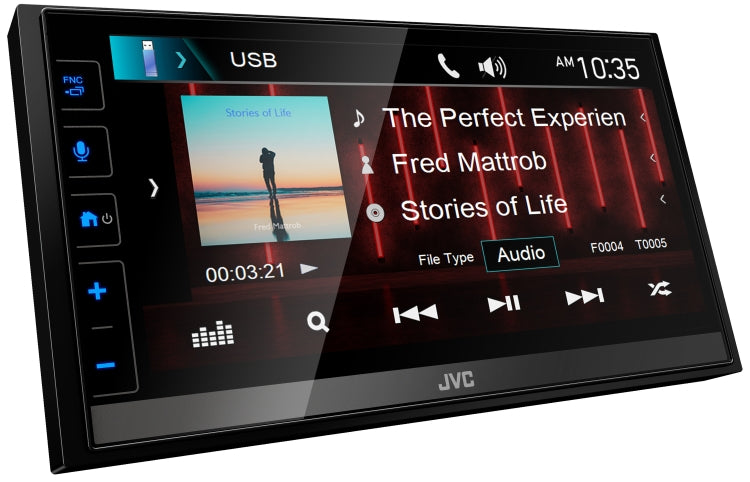

USB
- USB Port: x 1 (High speed)
- Position: Rear
- USB Power Supply: Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
Radio Tuner
- SiriusXM Ready: Yes
- Radio Broadcast Data System (RBDS): Yes
- Preset Stations: 20(FM:15ch, AM:5ch)
FM
- Frequency Range: 87.9 - 107.9MHz
AM
- Frequency Range: 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (8 Preset + 4 User)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X'over: Yes
- Digital Track Expander: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
- Time Alignment: Yes

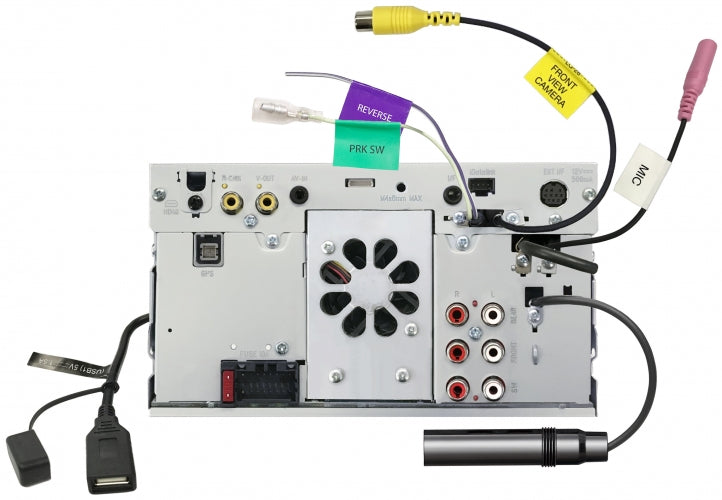

Inputs and Outputs
- AV Input: mini jack (AV-IN or Camera-IN switchable) x 1
- Video Out: RCA x 1
- HDMI Terminal: Yes
- Rear view camera Input: Yes
- Front view camera Input: Yes
- Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance: 4.0V / 10k ohms
General
- iDatalink Maestro Ready: Yes
- Back Up Memory: Yes
- Face Type
- Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree)
- Short Chassis: Yes (2-15/16inch, 75mm)
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
Dimensions (W x H x D)
- Installation Size: 7-1/16" x 3-15/16" x 2-15/16" (180 x 100 x 75 mm)
- Weight: 2.7 lbs. (1.2kg) Including Sleeve and Trim plate
- Unit weight in individual package: 4.2 lbs. (1.9kg)
