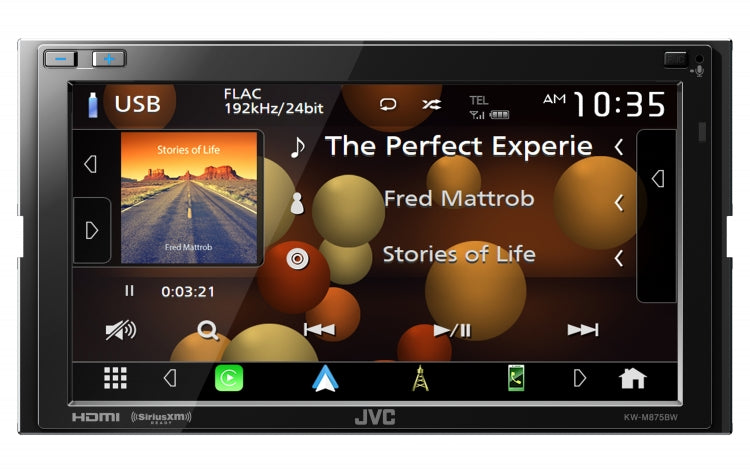

JVC Monitor with Receiver KW-M875BW

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

KW-M875BW

Monitor

• Screen Size: 6.8" Wide VGA

• Touch Panel: Clear Resistive

• Gesture Touch Control: Yes

• Customizable GUI: Yes

• Key Illumination Color: Blue

• Dimmer: Yes

• Multilingual Display: Yes[4]

• Wallpaper Capture: Yes

• Live Wallpaper: Yes

Media Playback

• MP3 Compatible with Tag: USB

• WMA Compatible with Tag: USB

• WAV Compatible with Tag: USB

• AAC Compatible with Tag: USB

• FLAC Compatible with Tag: USB

• H.264 Compatible: USB

• WMV Compatible: USB

• MPEG 1/2 Compatible: USB

• MPEG 4 Compatible: USB

• AVI/MKV Compatible: USB

• JPEG File Playback: USB

• PNG File Playback: USB

• BMP File Playback: USB

Bluetooth Control

• Built-in Bluetooth[1]: Yes (Version 5.0, Wired-Mic included)

• Hands Free Call: Yes (HFP1.7 Wideband Speech)

• 2 Phones Full-Time Connection: Yes

• Audio Streaming & Control (A2DP, AVRCP): Yes

• Supported Audio Formats: LDAC / AAC / SBC

• 5 BT-Audio Connection: Yes

• Voice Dialing (voice recognition compatible mobile phone required): Yes

• Phone Book Access Profile (PBAP): Yes

• Alphabetical Search for Phone Book: Yes

• Auto Pairing for iPhone/Android: Yes

Wi-Fi Control

• Built-in Wi-Fi: Yes

Android Control

• Android Auto[2]: Yes (via Wi-Fi or USB)

• Mirroring for Android: Yes (via Wi-Fi or HDMI)

• Android Music Playback: Yes (via Bluetooth(R))

iPod/iPhone Control

• CarPlay[3]: Yes (via Wi-Fi or USB)

• iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))

USB

• USB Port:  x 1 (Type-C)

• Position: Rear

• USB Power Supply: 5V / 3A (USB type-C Current 3A) or 5V / 1.5A (USB BC1.2)

• Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes

Radio Tuner

• SiriusXM Ready: Yes

• Radio Broadcast Data System (RBDS): Yes

• Preset Stations: 20(FM:15ch, AM:5ch)

• Auto Memory Entry: Yes
  FM

• Frequency Range: 87.9 - 107.9MHz
  AM

• Frequency Range: 530-1,700kHz

Audio

• Maximum Power Output (Front & Rear): 50Wx4

• Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)

• EQ: Yes (13-Band Graphic EQ)

• Preset EQ: Yes (8Preset + 4user)

• Bass Boost: Yes

• High-Pass Filter/Low-Pass Filter: Yes/Yes

• 3-Way X'over: Yes

• High-Resolution Audio: Yes

• K2 Technology: Yes

• Space Enhancement: Yes

• Sound Response: Yes

• Sound Lift: Yes

• Volume Link EQ: Yes

• Time Alignment: Yes

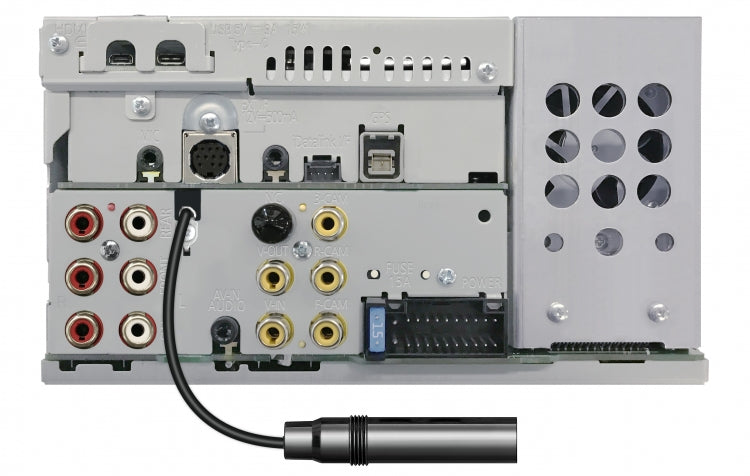

Inputs and Outputs

• AV Input: Video:RCA, Audio:mini-jack (AV-IN or CAM4 switchable)
  Video Out: RCA

• HDMI Terminal: Yes

• Rear view camera Input: Yes

• Front view camera Input: Yes

• 3rd Camera Input: Yes

• Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)

• Pre-output Level/Impedance: 5.0V / 10k ohms

• Subwoofer Output with Level/Frequency Control: Yes

General

• iDatalink Maestro Ready: Yes

• USB Extension Cable: x 1 (Type-C)

• USB Type-C to USB Type-A adaptor: Yes

• JVC Portal App: Yes

• Remote Control Application: Yes

• Back Up Memory: Yes
  Face Type

• Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps

• Short Chassis: Yes

• Wireless Remote Control: Ready (RM-RK258 required)

• Steering Remote Control Ready: Yes
  Dimensions (W x H x D)

• Installation Size: 7" x 3-15/16" x 3-3/8" (178 x 100 x 85 mm)

• Weight: 2.9 lbs. (1.3kg) Including Sleeve and Trim plate

• Unit weight in individual package: 1.9kg
