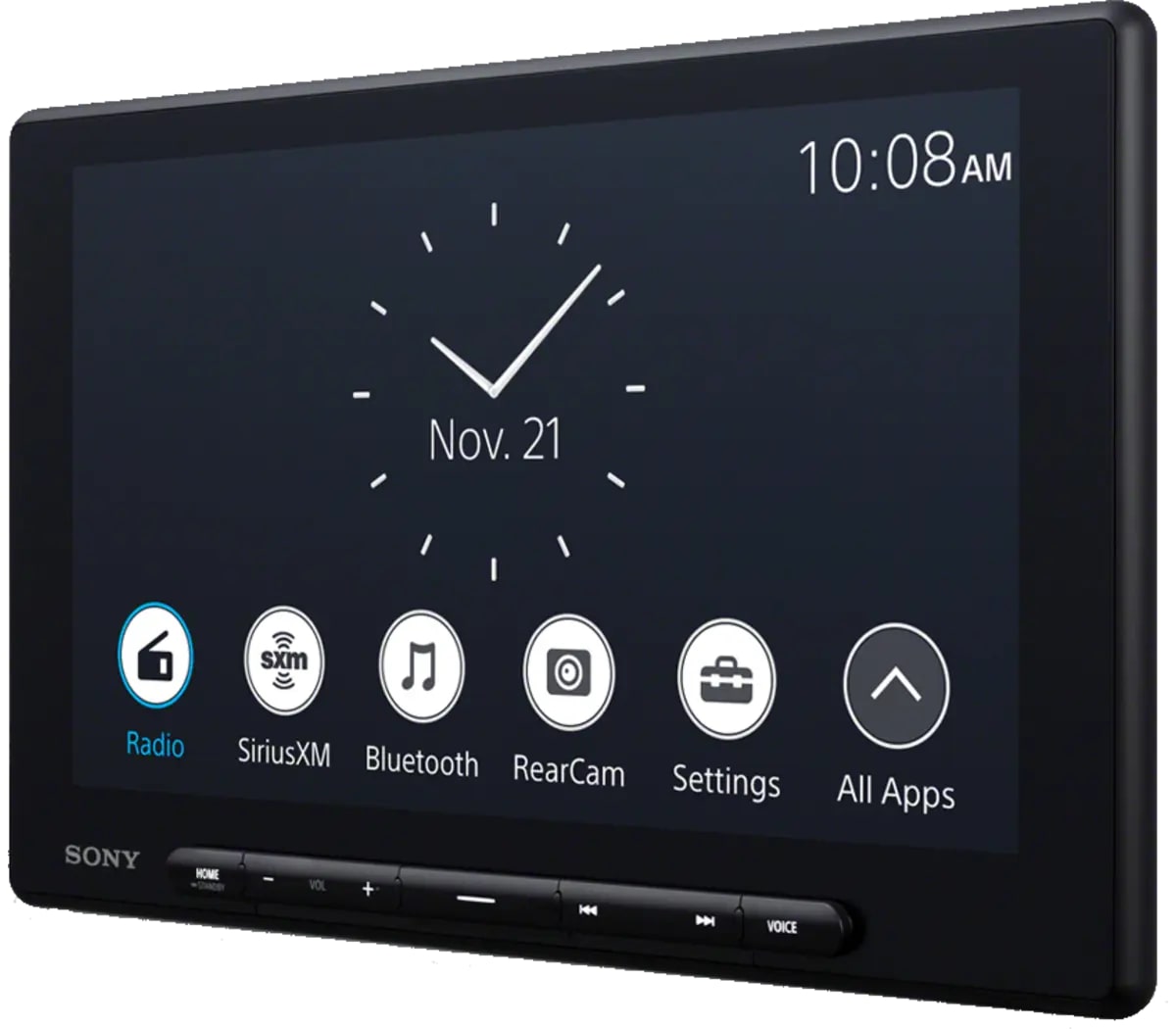

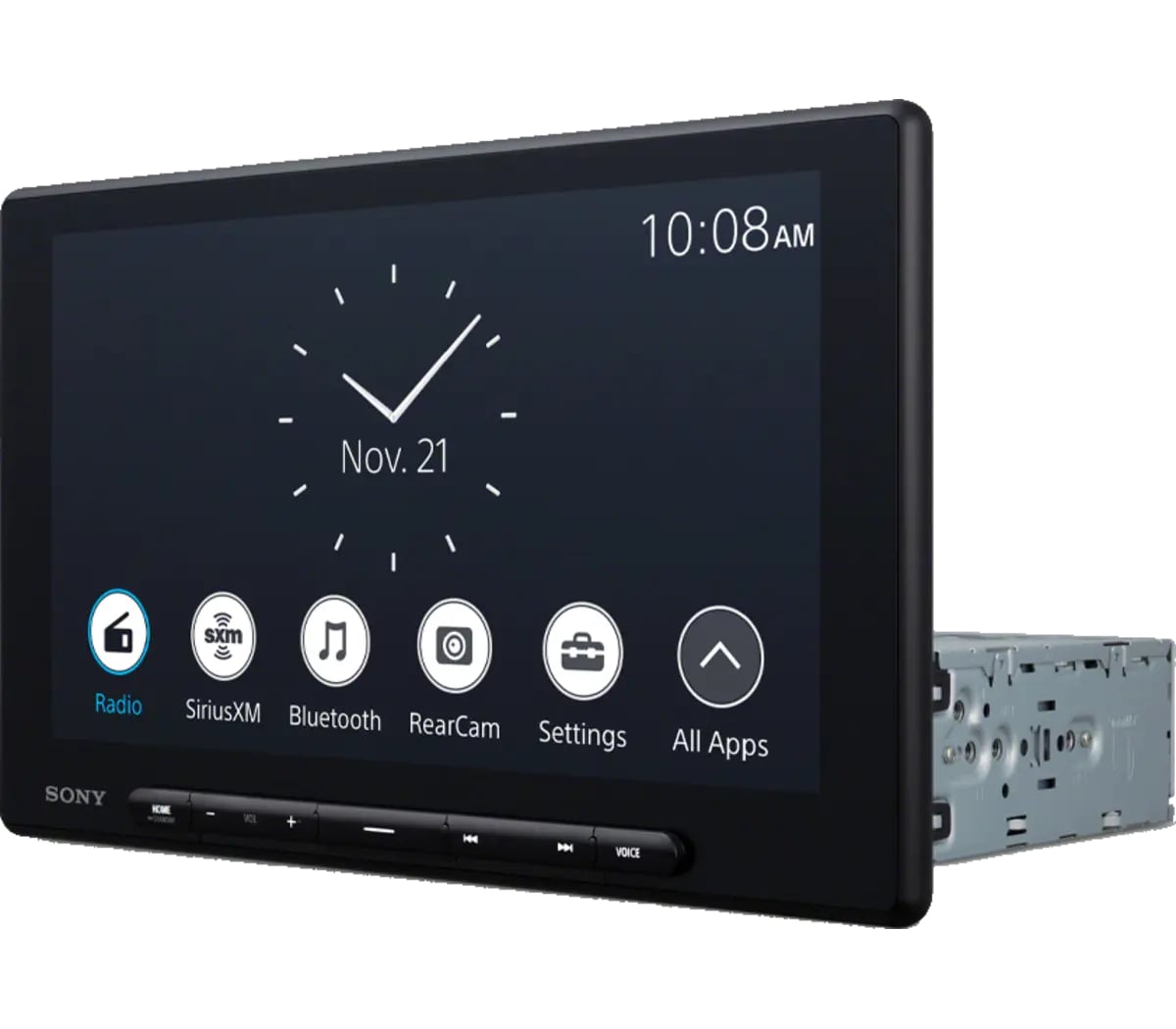

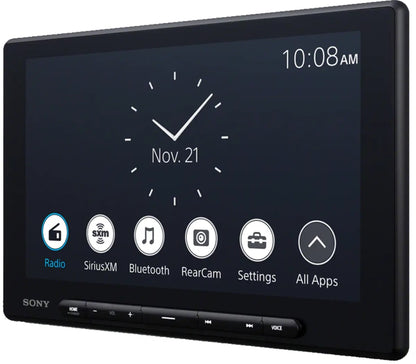

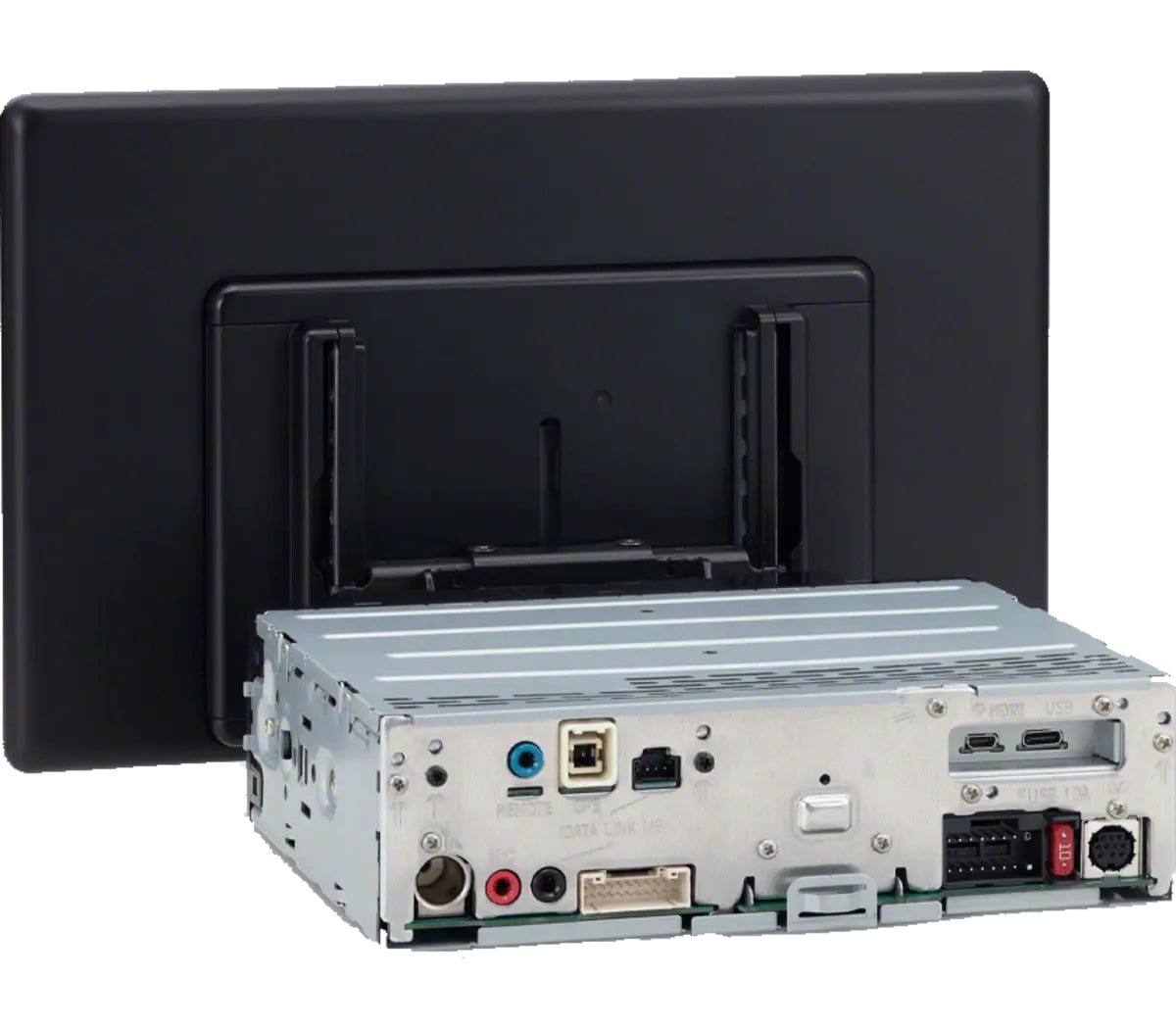

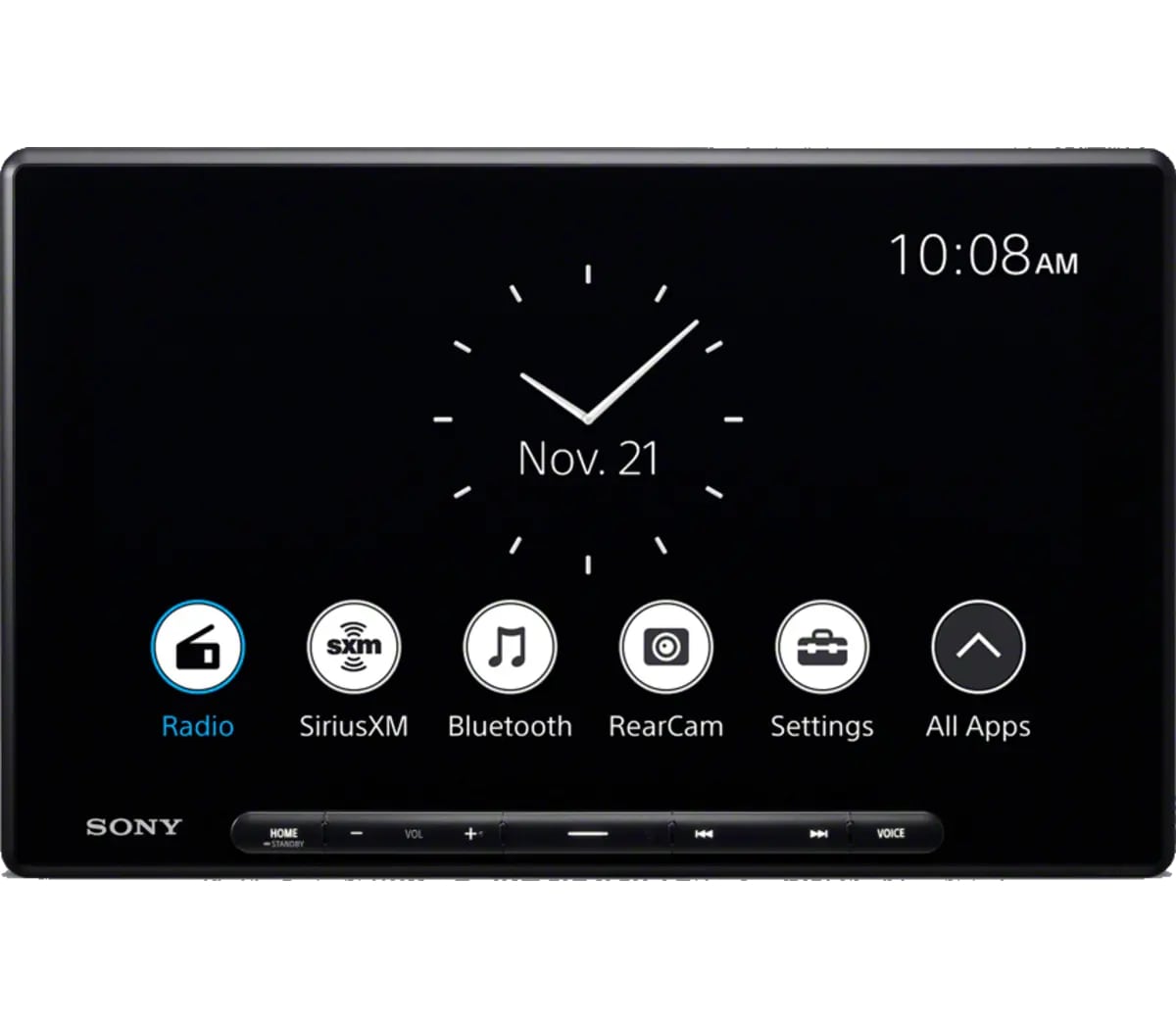

Sony 25.7 cm (10.1”) Digital Multimedia Receiver

Features

XAV-AX8500
Big screen with updated flexibility

The XAV-AX8500 digital multimedia receiver features a 25.7 cm (10.1 inch) capacitive HD touchscreen with an updated display joint featuring a new tilt and swivel mechanism. Together with both wireless and wired connectivity to your smartphone and various devices, and sound customisation, it offers a safe and enjoyable driving experience.

Specifications

Bluetooth Audio Feature

• Audio Level Adjustment: Yes (-6dB to +6dB)
• Group (Folder) +/-: Yes
• Meta Data Indication: Yes
• Repeat Control (Audio Device side): Yes
• Shuffle Control (Audio Device side): Yes
• Track +/-: Yes
• Audio Codec (Bluetooth Audio): SBC/AAC/LDAC
• Cue / Rev: Yes
• Pause (Bluetooth Audio): Yes

Bluetooth Feature

• Call Volume Level Control: Yes
• External Microphone: Supplied
• Phonebook Access via PBAP: Yes
• Ring Volume Level Control: Yes
• Signal Strength Indication: Yes
• Last Dialed Call: Yes (select from the dialed call history)
• Speed Dial:Yes (6 memories)
• Alphabetical Phonebook Sorting: Yes
• Battery Reminder: Yes
• Recent Calls (# of): Yes

Bluetooth Profile

• A2DP: Yes (1.3.1)
• AVRCP: Yes (1.6.1)
• HFP: Yes (1.7.1)
• PBAP: Yes (1.1)

Display Panel

• Dimmer Adjust: Yes

General Features

• Album artwork Indication: Yes
• Equalizer: 14-band Equalizer
• Firmware upgradability: Yes
• Output Power: 55W x4
• Pre Out: 5V 3-Pre (Front LR / Rear LR / Sub x 1)
• Rear View Camera in: Rear/Input 1/Input 2
• Time Alignment: Yes
• USB: Yes (Type-C x 1, REAR)

Monitor (AVC)

• Brightness: 425 cd/m2
• Dimmer: Auto/Manual select
• LCD Type: TFT Active Matrix
• Resolution (DOT): 1280 x 720
• Screen Aspect: 16:9
• SCREEN DIAGONAL (INCH / CM): 10.1 inches / 25.7 cm

Multi Language

• Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
• Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

Panel Design

• Key Illumination: Yes (White)

Size & Weight

• Dimensions (W x H x D): 269 × 167 × 258 mm
• Weight: 2.6 kg

Tuner Features

• Auto Memory: BTM
• Preset: FM18/AM12
• RDS / EON: Yes (RBDS)

USB Mass Storage Device Control Feature

• USB Device Control (Audio Codec): MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
• USB device control (audio playable file extension): .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
• USB Device Control (Pause): Yes
• USB Device Control (Repeat): TRACK/FOLDER/DRIVE
• USB Device Control (Resume Play): Yes
• USB Device Control (Shuffle): OFF/FOLDER/DEVICE
• USB Device Control (Video Codec): ASF/WMV/AVI/MKV/MPEG-4
• USB device control (video playable file extension): .asf/.wmv/.avi/.mkv/.mp4

User Interface

• Parking Control: Yes
• Parking Line Adjust: Yes
• Rear View Camera-In Marker Setting: Yes
• Touch Panel: Yes/Capacitive

What's In The Box

• What's In The Box: Warranty Card;External Microphone;Power Supply Leads;Connection Cables(Audio/Camera);USB Extension Cable(Type-C);GPS Antenna
