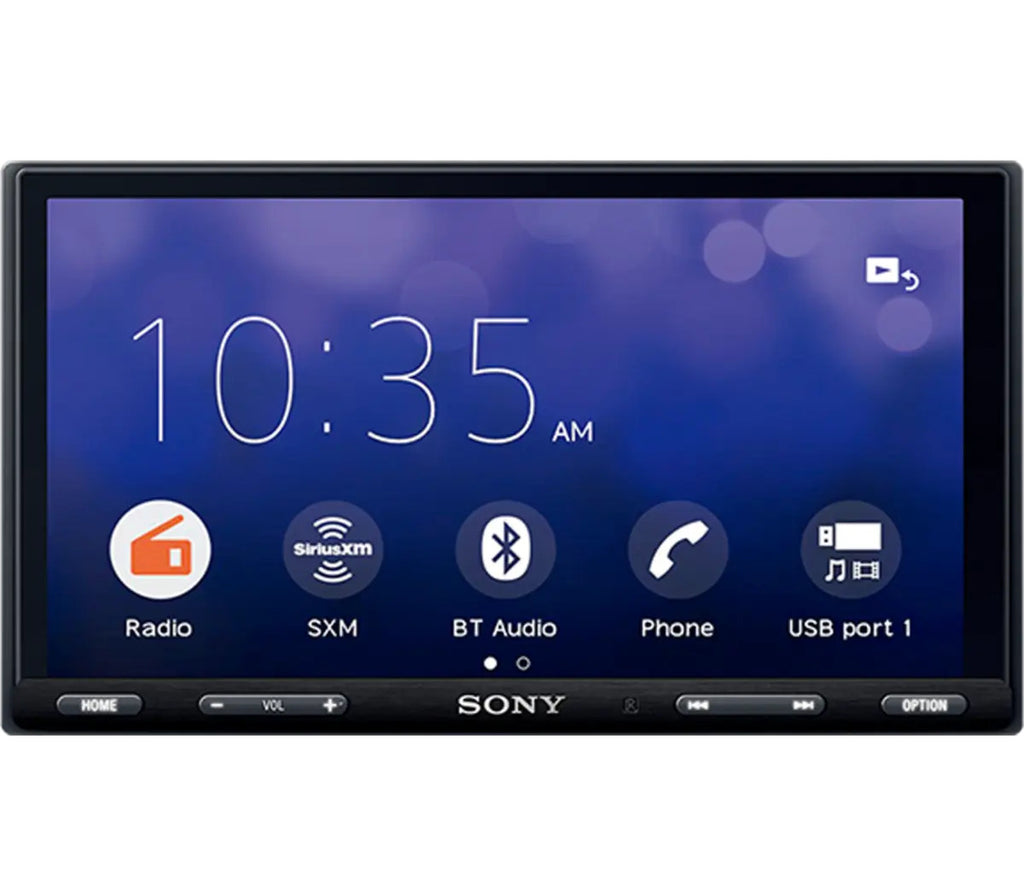

Sony 6.95” (17.6 cm) CarPlay/ Android Auto Media Receiver

About This Item

• Apple CarPlay² and Android™ Auto³ compatibility keep you connected on the road

• Mirror and control selected smartphone apps with Weblink™ Cast⁴

• Bezel-less 6.95” capacitive touchscreen for a seamless display

• Dual USB ports let you connect a smartphone and USB device simultaneously

• Build your own system with 3 x 5V pre-outs

• Customizable Wallpaper

• Dynamic Reality Amp 2 for clear, powerful sound

• Dynamic Stage Organizer creates virtual speakers on your dashboard

• Rear camera-ready for easy reversing

• Ergonomic key terminal for easy operation

• Bluetooth^®-enabled for hands-free calls and wireless music playback

Specifications

Bluetooth Audio Features

• Audio Codec (Bluetooth Audio): SBC / AAC
• Audio Level Adjustment: Yes (-6 dB to +6 dB)
• Cue / Rev: Yes
• Group (Folder) +/-: Yes
• Meta Data Indication: Yes
• Pause (Bluetooth Audio): Yes
• Repeat Control (Audio Device side): Yes
• Shuffle Control (Audio Device side): Yes
• Track +/-: Yes

Bluetooth Feature & Device

• # of records connected: 9
• Battery remainder indication: Yes
• Color System: NTSC/PAL
• Color System Auto switch: Yes
• Device Name: XAV-AX5500
• Dimmer Area: Display Monitor and Key
• Dimmer Method: Auto/Manual select
• Mic Gain Adjustment: Low/Mid/High
• Menu/Caution Initial: English
• Monitor off mode: Yes
• Pause: Yes
• RF ON/OFF: Yes
• Response Time (black->white/white->black): 20/20ms
• Screen Mode: Yes: TYpe1 to 4
• TEL out channel: Front
• Version: Bluetooth Version 3.0
• Viewing Angle (Contrast Ratio 10:1): 70/70/60/60 (L/R/U/D)
• Call Volume Level Control: Yes
• connection status (maximum #): [1HFP/PBAP+1Audio]
• echo canceller: Yes
• internal ringtone: 1(2016 Sony Mobile Ringtone)
• Key Illumination: Yes (White)
• noise canceller:  Yes
• phonebook code: UTF8
• recent calls (#of): Yes
• Ring Volume Level Control: Yes
• Speed Dial: Yes (6 memories)

Bluetooth Features

• Alphabetical Phonebook Sorting: Yes
• Call Volume Level Control: Yes
• External Microphone: Supplied
• Last Dialed Call: YES (select from the dialed call history)
• Phone Battery Level Reminder:Yes
• Phonebook Access via PBAP: Yes
• Recent Calls (# of): Yes
• Ring Volume Level Control: Yes
• Signal Strength Indication: Yes
• Speed Dial: Yes (6 memories)

Bluetooth Profile

• A2DP: Yes (1.3)
• AVRCP: Yes (1.3)
• HFP 1.5: Yes (1.6)
• PBAP: Yes (1.1)

Connectivity

• Bluetooth: Yes

Display Panel

• Dimmer Adjust: Yes

Feature & Device

• AAC playback: Yes
• Android Auto: Yes
• Apple CarPlay: Yes
• CUE/REV: Yes (Video: lock search)
• Graphic Equalizer: 10Band Graphic Equalizer
• H.264 playback: Yes
• High Voltage Pre Out: 5V
• ID3 Tag Indication (Version, Title/Artist/Album): Yes
• List: Yes
• MP3 playback: Yes
• MPEG-4 playback: Yes
• Max Layer#/Folder#/File#: 8/1000/20000
• PICTURE EQ: Yes
• Rear View Camera Input: Yes
• Repeat: Yes
• Repeat Initial: All
• Screen Size (Inch / mm): 176 mm (6.95 in)
• Shuffle: Yes
• Shuffle initial: Off
• Sirius XM Ready: Yes
• Tag Indication: Yes (USB2, USB1: Except Flac and WAV) No for extention cable
• Touch Panel: Yes / Capacitive(No AG) (Not Multi Touch Compatible)
• USB High Charge: Yes (1.5A)
• Voice Command (Smartphone Function) Activate: Yes (only CPAA)
• WAV playback: Yes
• WMA playback: Yes
• Xvid playback: Yes

General Features

• DSO (Dynamic Stage Organizer): Yes
• EXTRA BASS: Yes (Off/1/2)
• Equalizer: 10-band Graphic Equalizer
• Firmware upgradability: Yes
• Output Power: 55 W x4
• Pre Out: 3 Pre (Front/Rear/Sub x 1)
• Rear View Camera in: Yes
• USB: Yes (Rear x2)
• Apple CarPlay: Yes
• Android Auto: Yes
• Weblink: Yes

Monitor(AVC)

• Brightness: 500 cd/m2
• Contrast Ratio: 400
• Dimmer: Yes
• LCD Type: TFT Active Matrix
• Resolution (DOT): 800 x 480
• Screen Aspect: 17: 9
• Screen Diagonal (inch / mm): 6.95 inch
• Screen Size (W x H mm): 156.6 x 81.6 (mm)

Multi-Language

• Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
• ID3 Tag: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
• Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian

Others

• Bluetooth Logo Certification: Yes
• USB-IF Compliance Test: Yes
• Warranty card: Yes(NA for 3years)

Others Features

• Clock: 12H
• Demo Mode: Yes
• List Function: Yes
• Source List: Yes
• Wallpaper Initial: Blue
• Wallpaper custormization: Yes (From initial production or SW update, TBD.)

Panel Design

• Key Illumination: Yes (White)
• Panel Surface Finish Color: Black

Size & Weight

• Dimensions (W x H x D): 7.01 x 3.94 x 5.47 inches
• Weight: 2.20 lb

Specifications chart

• ANT connector: JASO
• Accessibility: Closed Caption / TTS: No support
• CTA2006 S/N: 80dBA
• CTA2006 output power: 20W
• Connector Type: 16P
• Dimensions (WxHxD)(mm): 178x100x139
• FM:Tuning range(MHz): 87.5-107.9
• FM[Tuning range(MHz)/step(kHz)/de-emphasis(mus)] 87.5-107.9/200/75: Yes
• MW:Tuning range(kHz): 530-1710
• MW[Tuning range(kHz)/step(kHz)] 530-1710/10: Yes
• Maximum output power (4ohms, 1kHz, 16V)(W): 55W
• Mounting dimensions (WxHxD)(mm): 182x111x120
• POP: Yes (CPAA)
• Preout output level(V): 5Vrms
• Ship: 2020 WK7
• Speaker impedance(ohms): 4-8Ω
• Weight(kg): 1

Tuner Features

• Auto Memory: BTM
• Preset:FM18 / AM12
• RDS / EON: Yes (RBDS)

USB Feature & Device

• Audio Codec: USB1:PCM/MP3/WMA/AAC/FLAC, USB2:MP3/WMA/FLAC
• Audio Playable File Extension: USB1: .wav/.mp3/.wma/.m4a/.flac, USB2:.mp3/.wma/.flac
• File System: USB1: exFAT, FAT12/16/32, USB2: FAT12/16/32
• MTP: USB1: No, USB2: Yes
• Pause: Yes
• Repeat: TRACK/FOLDER/DRIVE
• Resume Play: Yes
• Shuffle: OFF/FOLDER/DEVICE
• USB Mass Strage Device: Yes
• USB Media Transfer Protocol: USB1: No, USB2: Yes
• Version: USB1: USB2.0 (High speed),USB2: USB2.0 (Full speed)
• Video Codec: Only USB1:MPEG4-SP/AVC(H.264 Baseline)/WMV/MKV/XviD
• Video Playable File Extension: Only USB1: .mp4/.wmv/.mkv
• connection-enabled device list: WEB Support

USB Mass Storage Device Control Feature

• USB Device Control (Audio Codec): USB1: PCM / MP3 / WMA / AAC / FLAC, USB2: MP3 / WMA / FLAC
• USB Device Control (Pause): Yes
• USB Device Control (Repeat): TRACK / FOLDER / DRIVE
• USB Device Control (Resume Play): Yes
• USB Device Control (Shuffle): OFF / FOLDER / DEVICE
• USB Device Control (Video Codec): Only USB1: MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD
• USB device control (audio playable file extension): USB1: .wav / .mp3 / .wma / .m4a / .flac, USB2: .mp3 / .wma / .flac
• USB device control (video playable file extension): Only USB1: .mp4 / .wmv / .mkv

User Interface

• Aspect Ratio Select: Yes
• Gesture Command: Yes
• Parking Control: Yes
• Parking Line Adjust: Yes
• Rear View Camera-In Marker Setting: Yes
• Remote Commander: RM-X170
• Touch Panel: Yes/Capacitive
