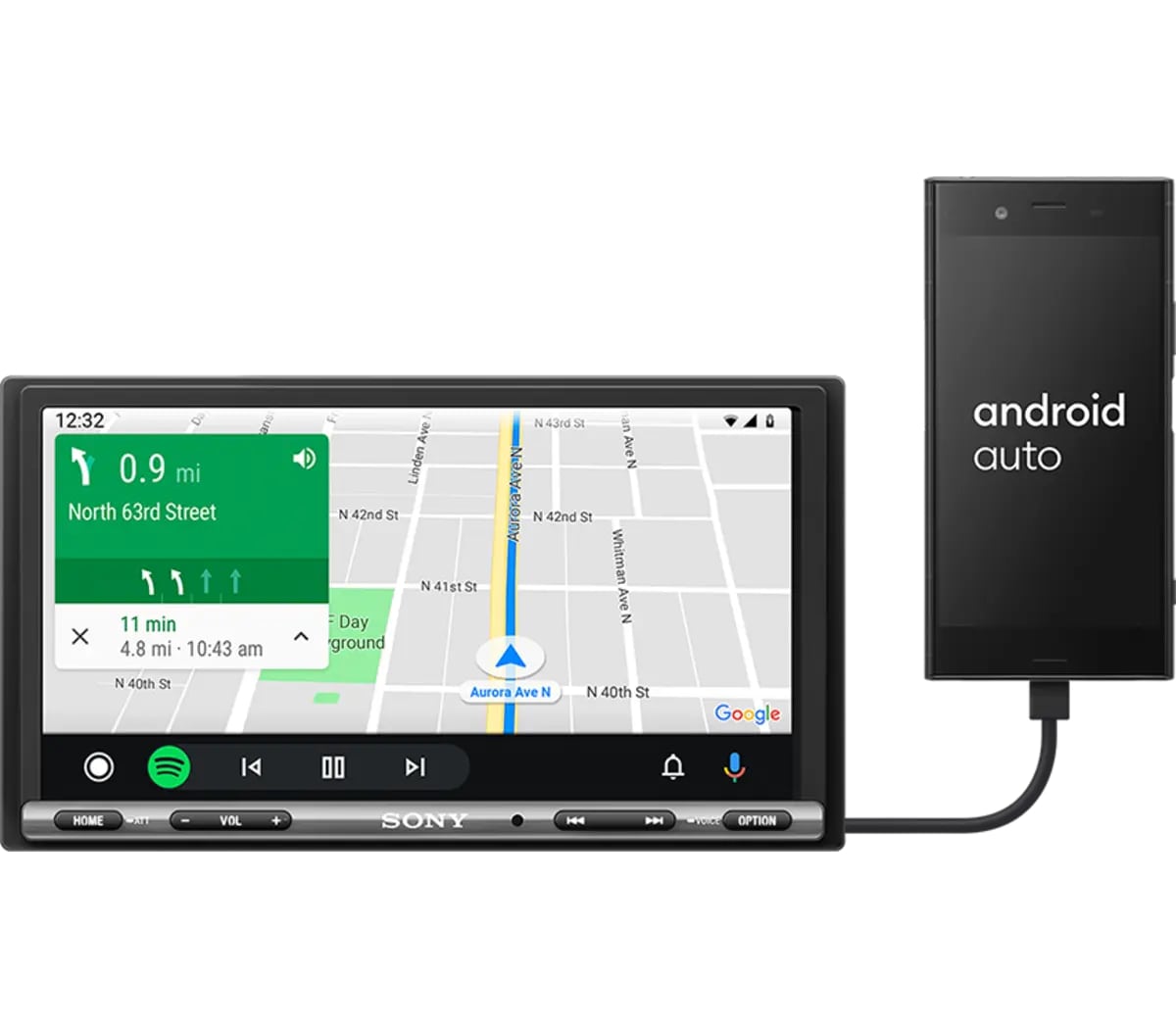

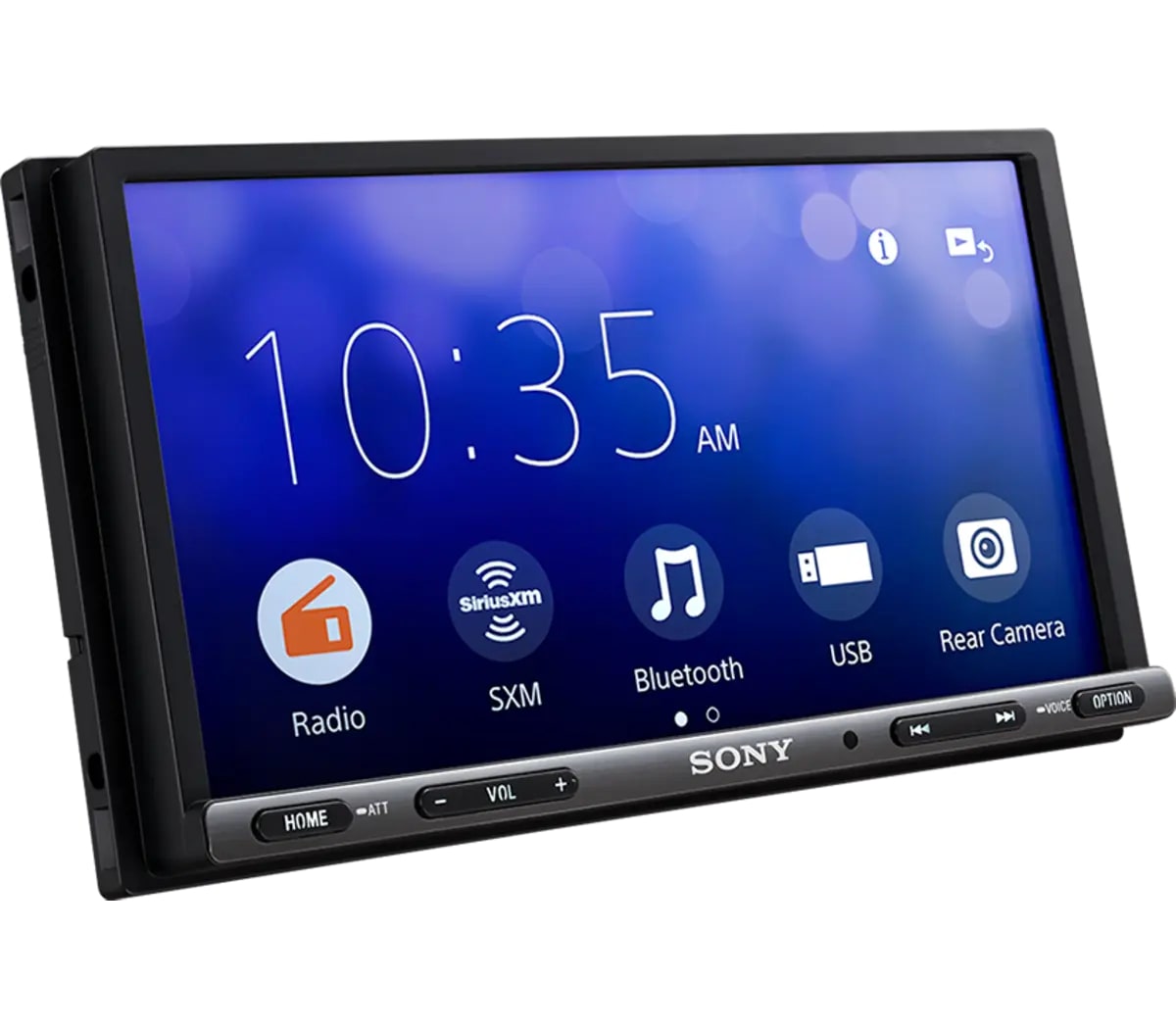

Sony 6.95” (17.6 cm) CarPlay/ Android Auto Media Receiver

About This Item

• Mirror and control selected smartphone apps with WebLink Cast¹

• Anti-glare touchscreen with quick boot

• EXTRA BASS™ adds low-end power

• A/V input for an external audio and visual source device

• Rear-view camera ready for safe reversing

Specifications

Product Basic Info

• Model Code: XAV-AX3200
• Spec: UC

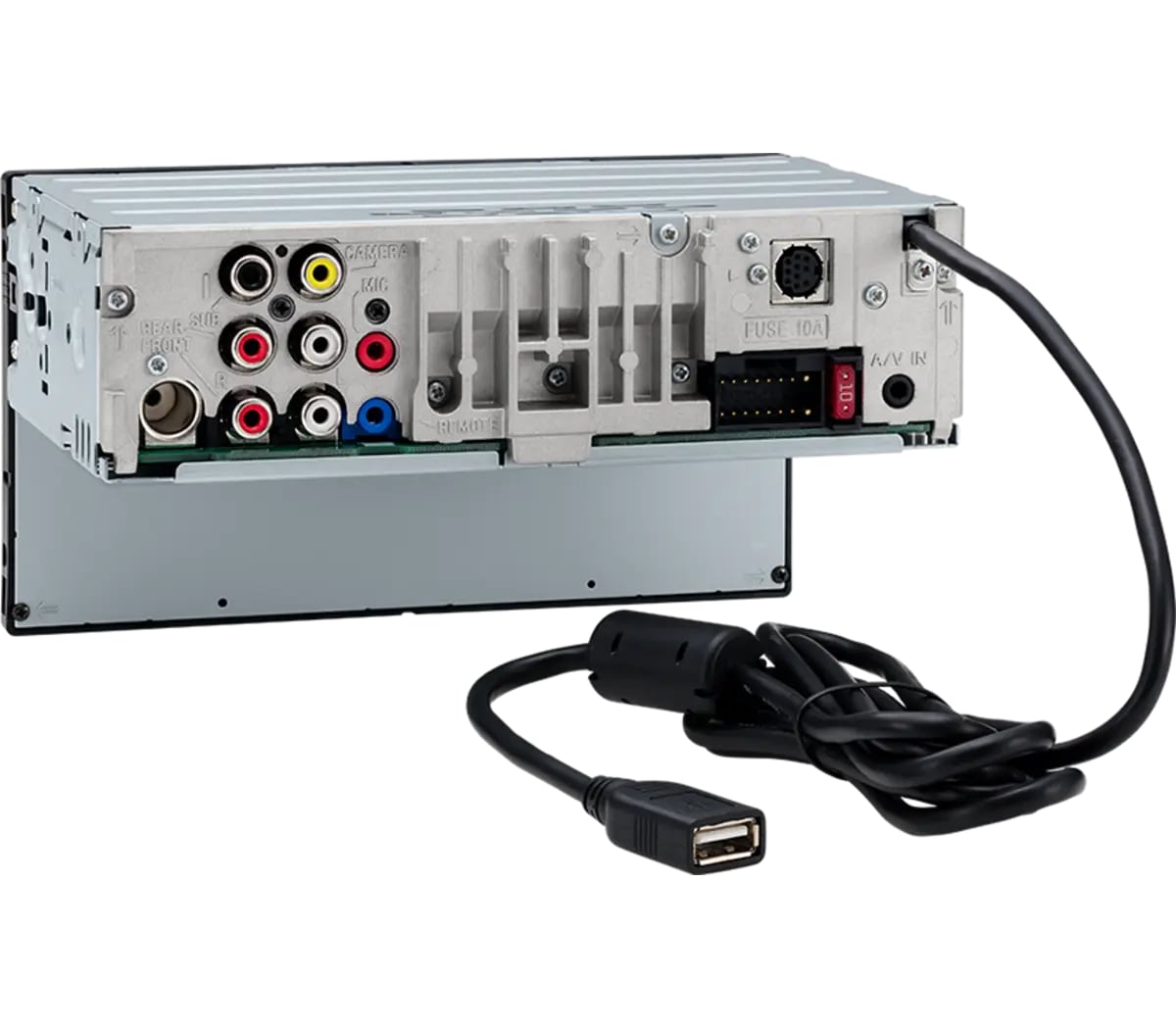

Expandability

• Pre Out: 3 Pre (Front / Rear / Sub x 1)
• High Voltage Pre Out: No
• AUX input (Stereo Mini-Jack): No
• AUX/Video input (RCA): Yes (Mini-Jack)
• Rear View Camera Input: Yes
• Video out: No
• USB: Yes (Rear x1)
• Bluetooth: Yes
• Extension Connector: No
• Sirius XM Ready: Yes
• DAB: No

Smartphone Linkage

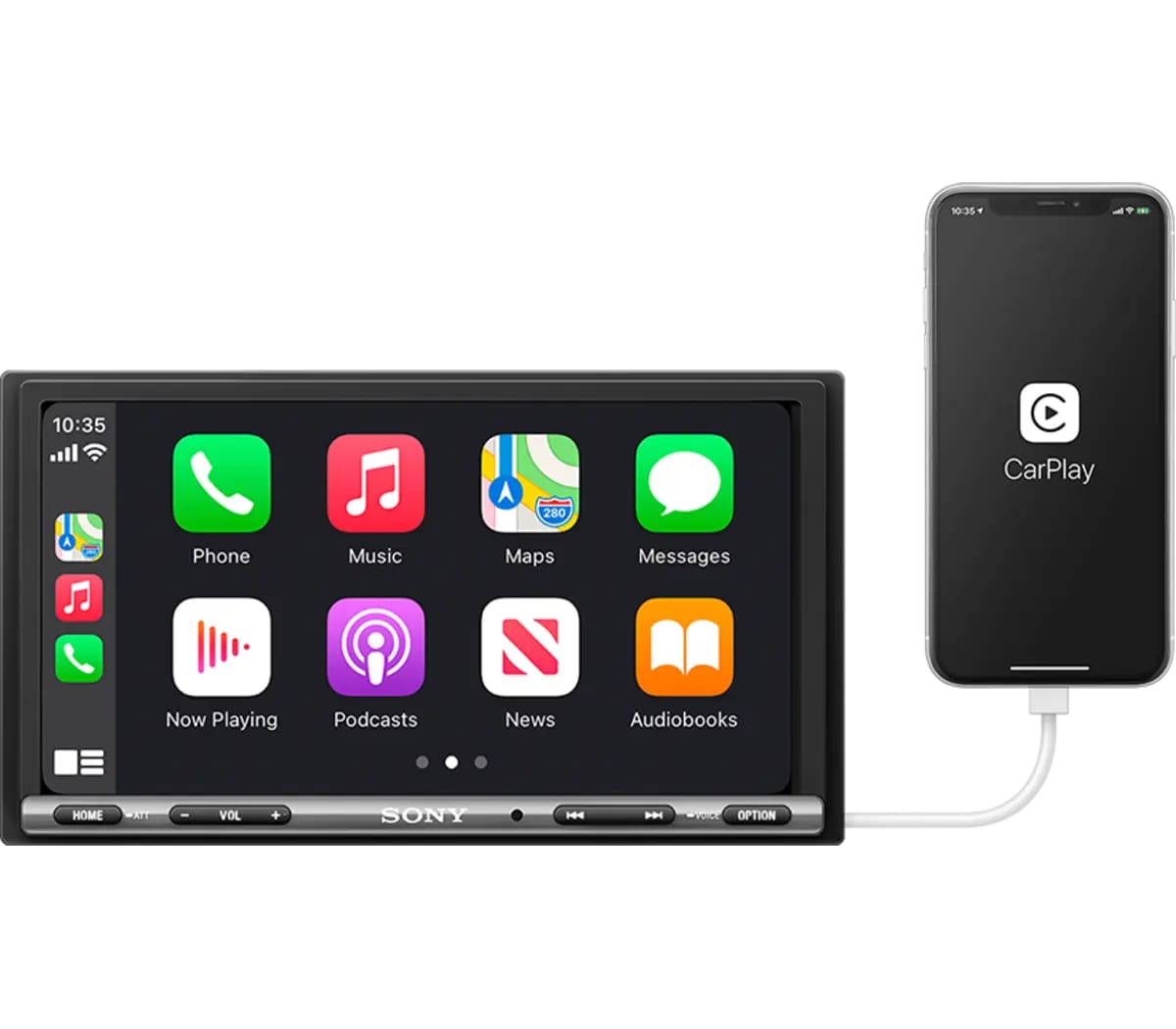

• Apple CarPlay: Yes
• Android Auto: Yes
• Weblink:Yes (WebLink CAST)
• Voice Command (Smartphone Function) Activate: Yes (Only CPAA)

General Feature

• DVD/CD Playback: No
• Sub Woofer Out initial: Normal
• Sub Woofer adjust:Yes
• Sub Woofer adjust initial: 0dB
• Sub Woofer Phase: Yes (Normal/Reverse)
• Balance initial: Center
• Fader initial: Center
• High Pass Filter initial: OFF
• Low Pass Filter initial: 100Hz
• ATT initial: OFF
• DVD LEVEL Adjust initial: No
• Zone x Zone: No
• PICTURE EQ initial: Dynamic
• Aspect Ratio Initial: Full
• USB High Charge: Yes / 1.5A
• Firmware upgradability: Yes
• Tag Indication: Yes (Except Flac and WAV)
• HD Radio embedded: No

Tuner Feature

• Preset: FM18/AM12
• Auto Memory: BTM
• FM 50k/100k/200k change: No
• AM 9k/10k change: No
• RDS/EON: Yes (RBDS)
• AF: No
• TA: No

USB Control Feature

• List: Yes
• Repeat: Yes
• Repeat Initial: All
• Shuffle:Yes
• Shuffle initial: Off
• Pause: Yes
• ID3 Tag Indication (Version_ Title/Artist/Album): Yes
• CUE/REV: Yes (Video: lock search)
• Max LayerNo./FolderNo./FileNo.: 8/1000/20000
• MP3 playback: Yes
• WMA playback: Yes
• AAC playback: Yes
• WAV playback: Yes
• JPEG playback: No
• MPEG-4 playback: Yes
• H.264 playback: Yes
• Divx playback: No
• Xvid playback: Yes
• PICTURE EQ: Yes

BT Spec.

• Version: Bluetooth Version 3.0
• EDR: -

Profile

• HFP: Yes (1.6)
• HSP: No
• A2DP: Yes (1.3)
• OPP: No
• DUN: No
• SPP: No
• AVRCP: Yes (1.3)
• AVRCP(MTE): No
• PBAP: Yes (1.1)
• SAP: No
• VDP: No
• BIP: No

Bluetooth Feature

• Recent calls (No.of): Yes
• Phonebook(Built in): No
• phonebook code: UTF8
• Phonebook Access via PBAP: Yes
• Alphabetical Phonebook Sorting (Built-in): No
• Alphabetical Phonebook Sorting (PBAP): Yes
• Phone data password lock: No
• Connection status (maximum No.): [1HFP/PBAP+1Audio]
• Display for connecting list: No
• Any Key Answer: No
• Auto Answer: No
• RF ON/OFF: Yes
• DTMF: No
• internal ringtone: 1 (2016 Sony Mobile Ringtone)
• noise canceller: Yes
• echo canceller: Yes
• Ring alert select: No
• Ring Volume Level Control: Yes
• Call Volume Level Control: Yes
• Mic Gain Adjustment: Low/Mid/High
• TEL out channel: Front / Rear / All
• Voice Dial Activation: No
• Built-in Microphone: No
• External Microphone: Supplied
• Battery remainder indication: Yes
• Signal Strength Indication: Yes
• Speed Dial: Yes (6 memories)
• Last Dialed Call: Yes (select from the dialed call history)

Bluetooth Audio Feature

• Audio Codec: SBC / AAC
• Pause: Yes
• CUE/REV: Yes
• Track +/-: Yes
• Group (Folder) +/-: Yes
• Audio Level Adjustment: Yes (-6dB to +6dB)
• Audio Level Adjustment initial: 0dB
• Repeat Control (Audio Device side): Yes
• Shuffle Control (Audio Device side): Yes
• Meta Data Indication: Yes

Panel Design

• Panel Surface Finish Color: Black
• Key Illumination: Yes (White)
• Panel Detachability: No

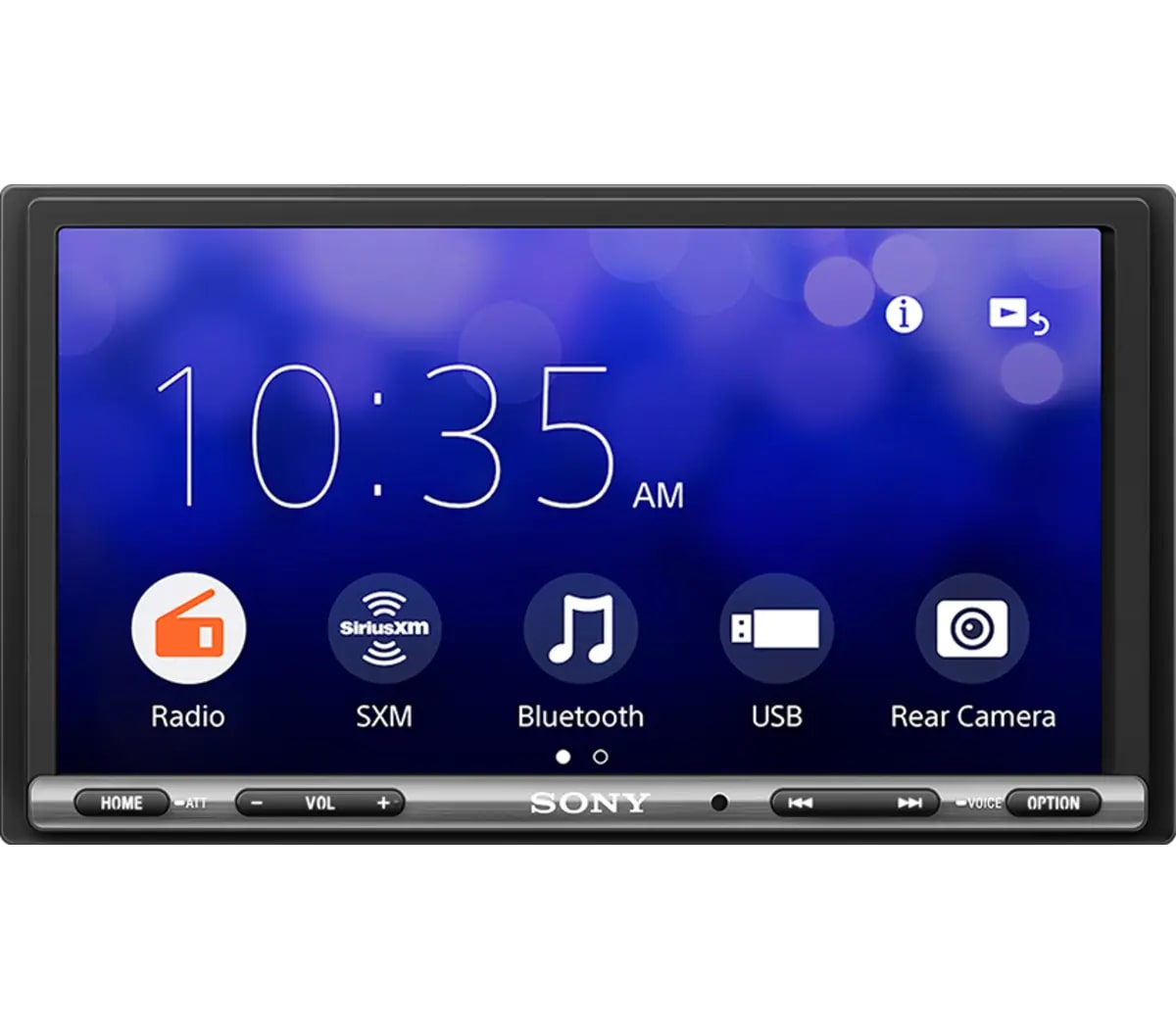

Monitor(AVC)

• LCD Type: TFT Active Matrix
• Screen Aspect: 16:9
• Dimmer: Yes
• Contrast Ratio: 600
• Brightness: 800 cd/m2
• Resolution(DOT): 800 × 480
• Dimmer Method: Auto/Manual select
• Screen Mode: Yes: TYpe1 to 4
• Color System: NTSC/PAL
• Color System Auto switch: Yes
• Viewing Angle (Contrast Ratio 10-1): 70/70/60/65 (L/R/U/D)
• Response Time (black to white/white to black): Tr+Tf= 30 mS
• Dimmer Adjust: Yes
• Screen Diagonal(inch/mm): 6.95inch / 176 mm
• Screen Size(WxH mm): 156.6 x 81.6 (mm)

Display Panel(MDP and AVC)

• Dimmer Area:  Display Monitor and Key
• Monitor off mode: Yes
• Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian

Multi Language

• Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
• Menu/Caution Initial: English
• ID3 Tag: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
• Source List: Yes

User Interface

• Parking Control: Yes
• Aspect Ratio Select: Yes
• Rear View Camera-In Marker Setting: Yes
• Clock: 12H
• Rotary commander ( )-Option: No
• Remote Commander ( )-Option: RM-X170
• Wallpaper Initial: Blue
• Wallpaper customization: Yes
• List Function: Yes
• Demo Mode: Yes
• Version: USB2.0 (High speed)

USB Specification

• USB Mass Strage Device: Yes

USB Capability

• USB Media Transfer Protocol: No
• USB Hub: No
• File System: exFAT, FAT12/16/32
• connection-enabled device list: WEB Support
• Repeat: TRACK/FOLDER/DRIVE

USB Mass Strage Device Control Feature

• Shuffle: OFF/FOLDER/DEVICE
• Pause: Yes
• Resume Play: Yes
• Plug and Play: No
• Audio Codec: PCM/MP3/WMA/AAC/FLAC
• Audio Playable File Extension: wav/.mp3/.wma/.m4a/.flac
• Video Codec: MPEG4-SP/AVC(H.264 Baseline)/WMV/MKV/XviD
• Video Playable File Extension: .mp4/.wmv/.mkv
• MTP: No
• FM(Tuning range(MHz)/step(kHz)/de-emphasis(mus))65-74/30/50(or75)_87.5-108/50/50: No

Accessory

• Fitting Frame: No
• Collar: No
• Warranty card: Yes (NA for 1 year)
• ISO connector: No
• MRP Sticker for 'IN' version(India): No
• Maruti-CDO Stickers (MGA/Packing List/PartsNo.): No
• Maruti Connector Cable: No
• Remote Commander Remote Control: RM-170
• Steering Remote Control cable: RC-SR1
• Bluetooth microphone: Yes (Wired)

Tuner

• FM(Tuning range(MHz)/step(kHz)/de-emphasis(mus)) 87.5-108/50/50: No
• FM(Tuning range(MHz)/step(kHz)/de-emphasis(mus)) 87.5-107.9/200/75: Yes
• FM(Tuning range(MHz)/step(kHz)/de-emphasis(mus)) 87.5-107.9/100/75: No
• MW(Tuning range(kHz)/step(kHz)) 531-1602/9: No
• MW(Tuning range(kHz)/step(kHz)) 530-1710/10: Yes
• LW(Tuning range(kHz)/step(kHz)) 153-279/seek 9 manual 1:No
• SW(Tuning range(kHz)/step(kHz)) 5950-6205/5: No
• FM-Tuning range(MHz): 87.5-107.9
• MW-Tuning range(kHz): 530-1710
• LW-Tuning range(kHz): No
• Accessibility: Closed Caption / TTS: No support


Display

• Screen Size (Inch / mm):6.95inch / 176 mm
• Touch Panel: Resistive + AG

Sound

• Output Power: 55W
• EXTRA BASS: Yes (Off/1/2)
• Graphic Equalizer: 10Band Graphic Equalizer
• DSO: Yes
• Time Alignment: No

Other Features

• Device Name: XAV-AX3200

General

• Preout output level(V): 2Vrms
• Maximum output power (4ohms_ 1kHz_ 16V)(W): 55W
• CTA2006 output power: 20W
• CTA2006 S/N: 80dBA
• Speaker impedance(ohms): 4-8Ω
• Connector Type: 16P
• ANT connector: JASO
• Dimensions (WxHxD)(mm): 178 x 100 x 139

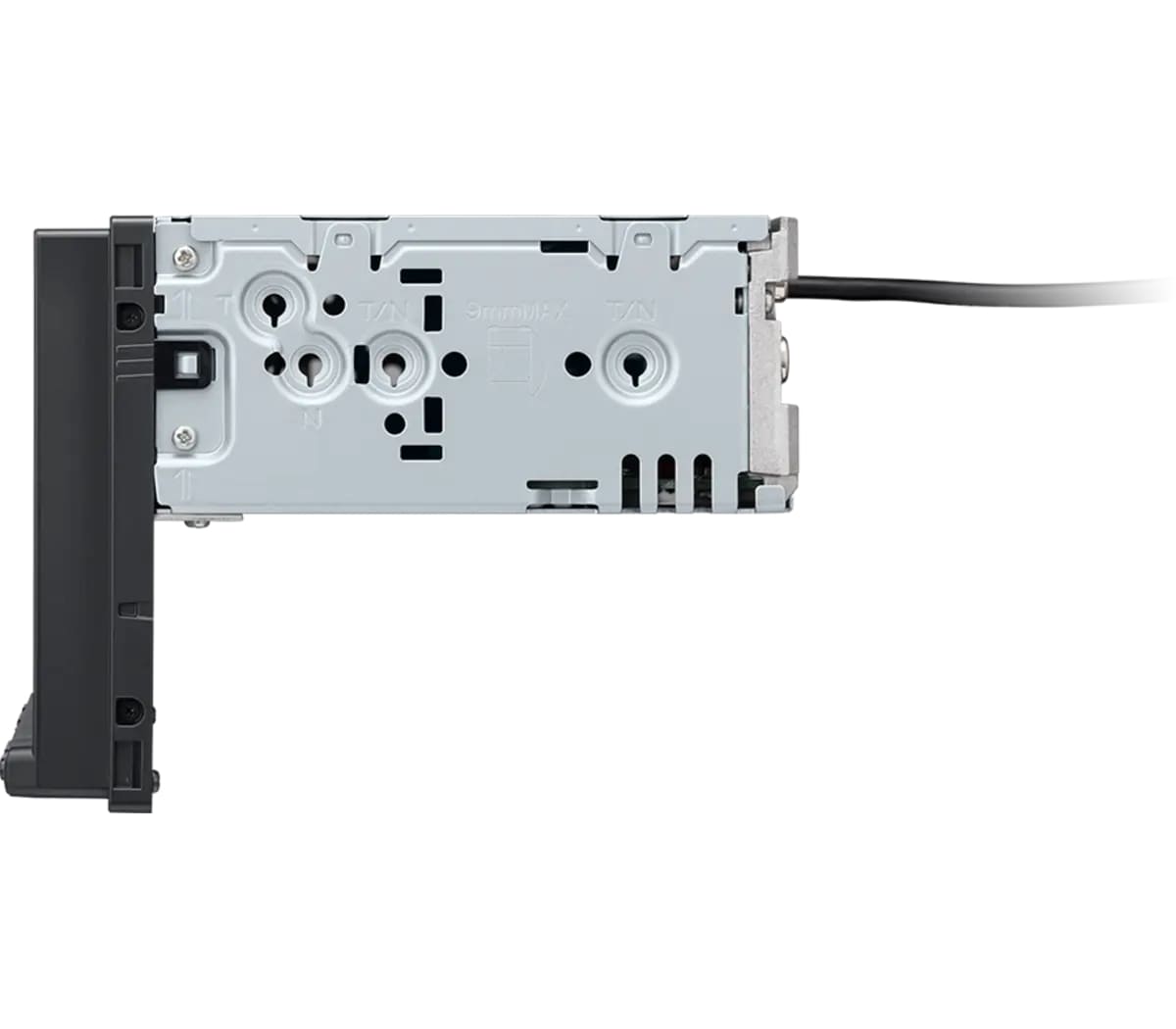

• Mounting dimensions (WxHxD)(mm): 182 x 111 x 120
• Weight(kg):  1.0
