Sony Mobile ES™ 6.75‘’ (17.1cm) Wireless High-Resolution Digital Auto Media Receiver

About This Item

• Bezel-less 6.75 inch (17.1 cm) HD (1280 x 720) capacitive touchscreen

• LDAC^™ High-Resolution Audio wireless streaming

• Time alignment and 14-band EQ for pitch-perfect sound customization

• Native 192 kHz / 24-bit WAV, FLAC, ALAC audio playback, and DSD file playback via 192 kHz / 24-bit PCM conversion

• USB Type-C^® for compatible smartphone

Specifications

Panel Design

• Panel Surface Finish Color: Black
• Key Illumination: Yes (White)
• Panel Detachability: No

Multi-Language

• Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
• Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
• Menu/Caution Initial: English
• Meta Data Indication: English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

Expandability

• USB: Yes (Type-C x 1, REAR)
• Bluetooth: Yes
• Rear View Camera Input: Rear/Input 1/Input 2
• Video out: No
• Pre-out: 3 Pre (Front LR / Rear LR / Sub LR)
• Pre-out output level (V): 5Vrms
• AUX IN: No
• A/V IN:  No
• SiriusXM Ready: Yes
• HDMI IN: No
• WI-FI: Yes
• Built-in Microphone: No
• External Microphone: Supplied
• Steering Wheel Remote Input: Yes
• Maestro RR: Yes

Smartphone Linkage

• Weblink: No
• Voice Command (Smartphone Function) Activate: Yes (only CPAA)
• Apple CarPlay (for Promo): Yes(Wireless)
• Apple CarPlay (for Design): Yes (Wireless)
• Android Auto (for Promo): Yes (USB/Wireless)
• Android Auto (for Design): Yes (USB/Wireless)

Hi-Res

• Supported Formats: WAV/FLAC/ALAC
• WAV format: 8k–768kHz / 16, 24, 32bits
• FLAC format: 8k–384kHz / 16, 24bits
• ALAC format: 8k–384kHz / 16, 24bits
• Native DSD playback: No
• Compatible native DSD files: Yes (.dsf/.dff)
• DSD file clock: 2.8M, 5.6M, 11.2M, 22.4MHz

DVD/CD

• DVD/CD Playback: No

BT Audio

• Audio Codec: SBC/AAC/LDAC
• Pause: Yes
• CUE/REV: Yes
• Track +/-: Yes
• Folder +/-: Yes
• Audio Level Adjustment: Yes (-6dB to +6dB)
• Audio Level Adjustment initial: 0dB
• Repeat Control: Yes
• Shuffle Control: Yes
• Meta Data Indication: Yes

BT Phone

• Speed dial / 短縮ダイヤル: Yes (6 memories)
• Recent calls (No.of): Yes
• Last dialed call / リダイヤル: Yes (select from the dialed call history)
• Phonebook(Built in): No
• phonebook code: UTF8
• Phonebook Access via PBAP: Yes
• Alphabetical Phonebook Sorting (Built-in): No
• Alphabetical Phonebook Sorting (PBAP): Yes
• Phone data password lock: No
• Connection status (maximum No.): [1HFP/PBAP+1Audio]
• Display for connecting list: No
• No. of records connected: 9
• Any Key Answer: No
• Auto Answer: No
• DTMF: No
• Iinternal ringtone: 1 (2016 Sony Mobile Ringtone)
• noise canceller: Yes
• Noise canceller initial: Medium Cabin
• echo canceller: Yes
• Echo canceller initial: Medium Cabin
• Ring alert (Internal/Cellular):  No
• Ring Volume Level Control: Yes
• Ring volume level control initial: 14
• Call Volume Level Control: Yes
• Call volume level control initial: 14
• Mic Gain Adjustment: Low/Mid/High
• MIC GAIN Adjustment initial: Mid
• TEL out channel: Front/Rear
• TEL out channel initial: Front
• Voice Dial Activation: No
• Battery remainder indication: Yes
• Signal Strength Indication: Yes

Sound Adjustment

• EQ Bands: 14 Band Graphic Equalizer
• EXTRA BASS: No

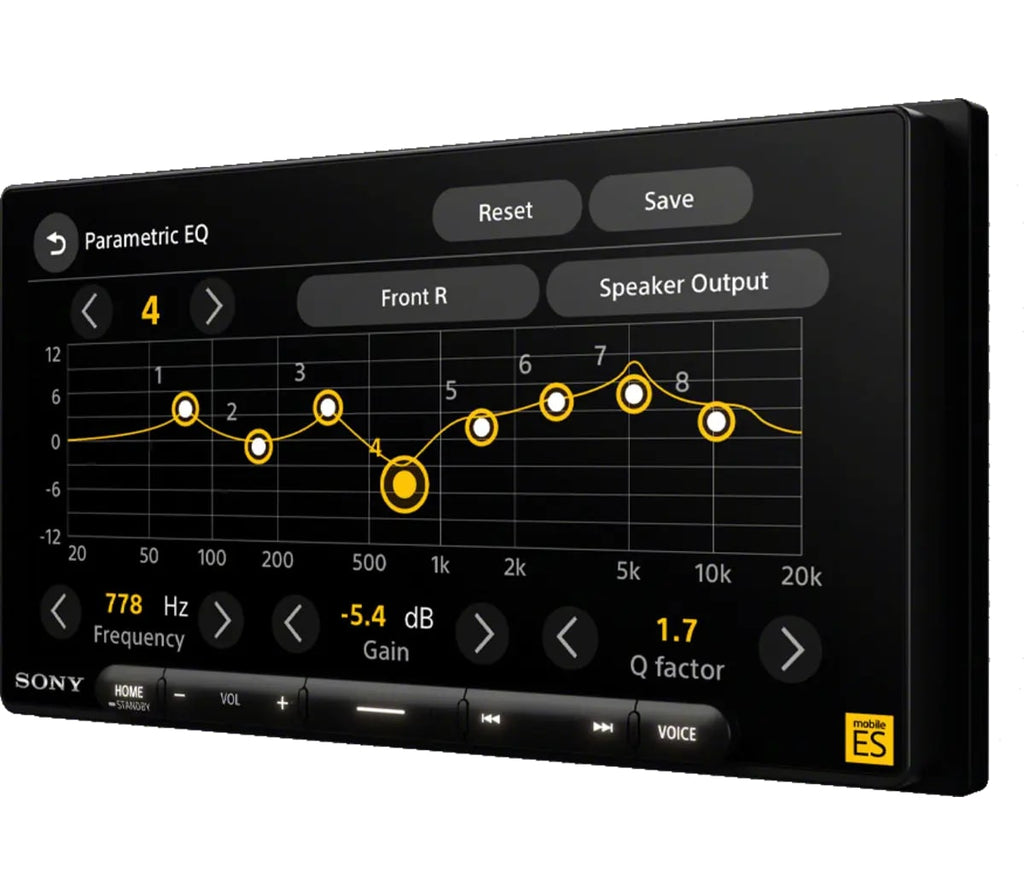

• Parametric Equalizer (PEQ): Yes
• PEQ initial: Off
• Dynamic Stage Organizer (DSO): No
• Time Alignment: Yes
• Balance: Yes (+15 to -15)
• Balance initial: 0
• Fader: Yes (+15 to -15)
• Fader initial: 0
• Listening Position: Yes
• High Pass Filter: Yes (50Hz to 250Hz)
• High Pass Filter initial: Off
• Low Pass Filter
  Yes (50Hz to 250Hz)
• Low Pass Filter initial: Off
• Subwoofer Phase: Normal/Reverse
• Subwoofer Phase initial: Normal
• Subwoofer Adjust: Yes (50Hz to 250Hz)
• Subwoofer Adjust initial: 250Hz

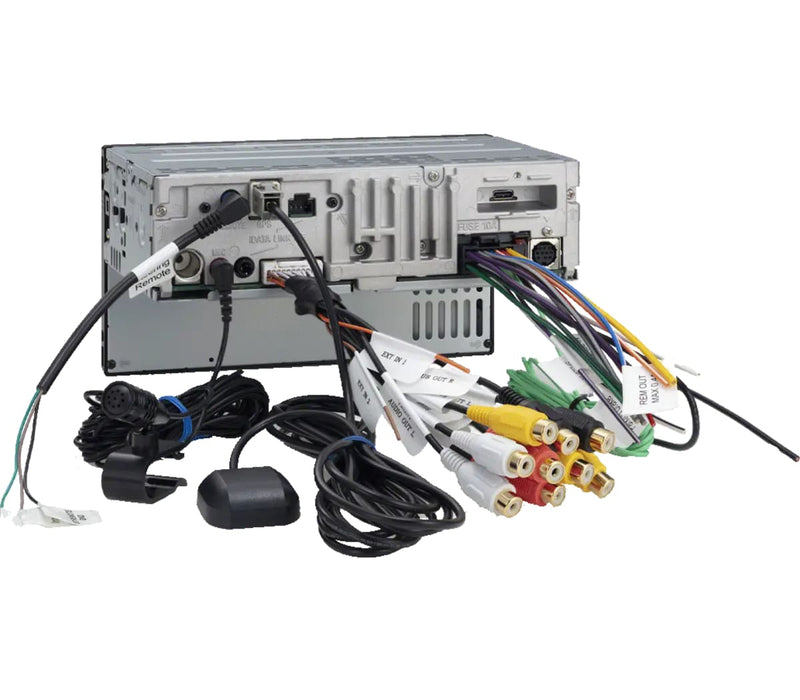

Supplied Accessories

• Warranty card: Yes (NA for 3years)
• HDMI Cable: No
• Fitting Frame:No
• Trim Ring (Collar): No
• Power Connector (Normal): Yes
• Power Connector (ISO): No
• Maruti Connector Cable: No
• External Microphone: Yes
• Remote Commander: No
• Steering Remote Control cable: Yes
• Ninja Cover: No
• GPS Antenna: Yes
• USB Extension Cable: Yes
• RCA Cable: Yes (22pin)
• Sensormatic Tag for Walmart: No
• MRP Sticker for 'IN' version (India): No
• Maruti-CDO Stickers (MGA/Packing List/PartsNo.): No
• SNI (Standard National Indonesia) Label on Individual Carton: No

USB

• USB VERSION: USB 2.0 (Type-C)
• USB Charging Spec. (Max current/Voltage): Yes (3A)
• Mass Storage Class (MSC): Yes
• Media Transfer Protocol (MTP): No
• File System: exFAT, FAT12/16/32
• Max Layer/Folder/File number: 25,000 files
• Plug and Play: No
• List Function: Yes
• Pause: Yes
• CUE/REV: Yes
• Resume: Yes
• Repeat: TRACK/FOLDER/DRIVE
• Repeat Initial: All
• Shuffle: OFF/FOLDER/DEVICE
• Shuffle initial: Off
• Audio Codec: MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
• Audio Playable File Extension:  .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
• Video Codec: ASF/WMV/AVI/MKV/MPEG-4
• Video Playable File Extension: .asf/.wmv/.avi/.mkv/.mp4
• Album artwork Indication: Yes
• Meta Data Indication: Yes

HDMI

• HDMI Version: No
• HDCP Version: No

Tuner

• FM Tuning range (MHz): 87.5-107.9MHz
• Selectable FM Step Frequency: No (200kHz)
• FM (Tuning range/step/de-emphasis) : 65-74MHz/30kHz/50us (OIRT): No
• FM (Tuning range/step/de-emphasis) : 87.5-108MHz/50kHz/50us: No
• FM (Tuning range/step/de-emphasis) : 87.5-108MHz/100kHz/50us: No
• FM (Tuning range/step/de-emphasis) : 87.5-107.9MHz/200kHz/75us: Yes
• FM (Tuning range/step/de-emphasis) : 87.5-108MHz/100kHz/75us: No
• MW Tuning range (kHz): 530-1710kHz
• Selectable AM Step Frequency: No (10kHz)
• MW (Tuning range/step) : 531-1602kHz/9kHz: No
• MW (Tuning range/step) : 530-1710kHz/10kHz: Yes
• LW Tuning range (kHz): No
• LW (Tuning range/step) : 153-279kHz/Seek 9kHz, Manual 1kHz: No
• SW (Tuning range/step) : 5950-6205kHz/5kHz: No
• RDS/EON: Yes (RBDS)
• Preset: FM18/AM12
• Auto Memory: BTM
• AF: Yes
• AF initial: Off
• FM S/N ratio (mono) (dB): 70dB
• FM Channel separation (dB): 45dB
• FM Frequency response (Hz): 20-15,000Hz
• MW/LW/SW Sensitivity (75 Ω) MW/LW/SW (μV): 32dB
• DAB: No
• HD Radio embedded: No
• TA: No
• FM Usable sensitivity (75 Ω)(dBf): 7dB
• FM Selectivity (400 kHz) (dB): 75dB

Bluetooth

• Bluetooth version: Bluetooth Version 5.0
• HFP: Yes (1.7.1)
• HSP: No
• A2DP: Yes (1.3.1)
• OPP: No
• DUN: No
• SPP:No
• AVRCP: Yes (1.6.1)
• AVRCP (MTE): No
• PBAP: Yes (1.1)
• SAP: No
• VDP: No
• BIP: No
• RF ON/OFF: Yes
• RF ON/OFF initial:On
• Device Name: XAV-9000ES

Display

• Touch Screen: Yes / Capacitive with AG (Not Multi Touch Compatible)
• LCD Type: TFT Active Matrix
• Screen Aspect Ratio: 17:9
• Screen Size Diagonal (inch/mm): 6.75 inch / 171 mm
• Screen Size (WxH mm): 168.1 X 93.1 (mm)
• Resolution (DOT): 1280 X 720
• Brightness: 425 cd/m2
• Viewing Angle (Contrast Ratio 10-1): 85/85/85/85 (L/R/U/D)

General

• Maximum output power (4ohms_1kHz_16V) (W): 55W
• Speaker impedance (ohms): 4-8Ω
• CTA2006 output power (W): 20W
• CTA2006 S/N (dBA): 86dBA
• Backup Memory: Yes
• Source Sound Memory (SSM): No
• Clock: 12H
• Beep initial: On
• Steering Wheel Remote initial: Preset
• Demo Mode: Yes
• Display off mode: Yes
• Dimmer: Yes
• Dimmer Area: Display Monitor and Key
• Dimmer Method: Auto/Manual select
• Dimmer Adjust: Yes
• Dimmer Adjust initial: 6
• Color System: NTSC/PAL
• Color System Auto switch: Yes
• Aspect: No
• PICTURE EQ: No
• Wallpaper preset quantity: 4
• Wallpaper Initial: Black
• Wallpaper customization: Yes (Custom 2)
• Splash screen: No
• Parking Control: Yes
• Speed pulse Control: Yes (for GPS)
• Rear View Camera-In Marker Setting: Yes
• Firmware upgradability: Yes (by USB flash drive or Smartphone USB tethering)
• Accessibility: Closed Caption / TTS: No support
• Power connector type: 16P
• ANT connector type: JASO
• Dimensions (WxHxD) (mm): 178 x 100 x 137
• Mounting dimensions (WxHxD) (mm):182 x 111 x 120
• WEIGHT (kg): 1
• POP: mobile ES logo, Sirius XM Ready
