OVERVIEW

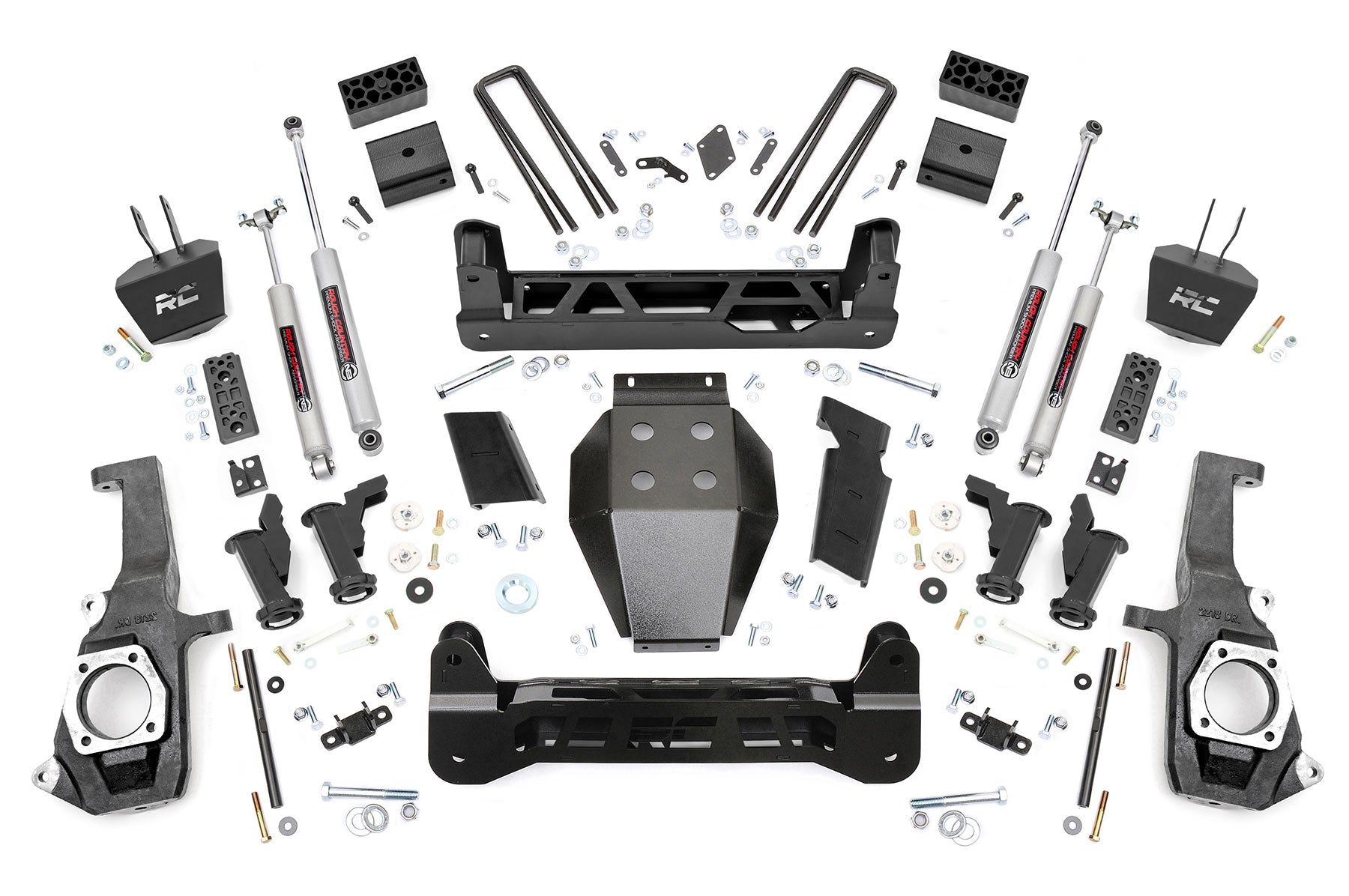

Right off the lot The GM 2500 HD has an impressive stance and a killer look, inspiring Rough Country to build a kit that would add crucial enhancements while taking nothing away from this sharp looking, new model truck. The 5" N3 Suspension Lift for GM 2500 HD features a Torsion Drop Design for better ride quality and handling while maintaining proper angles in a factory fashion. This kit also features Heavy Duty components worthy of the HD badge; With 1/4" thick steel crossmembers, 1/4" thick Torsion Bar Drop Brackets, and a durable, thick Skid Plate - all laser-cut and powder coated in our "Hammer Black" color to match the factory components. Installation requires no drilling or modifying the differential, meaning no "invasive" mods to your new toy.
Our innovative HD lift doesn't just look like it came from the showroom floor, it drives like it did too. This kit doesn't widen the stock track width, and the Torsion Drop Brackets design keeps everything at optimum angles, leaving that factory feel to handling corners and turns. A full set of Nitrogen charged N3 Shock Absorbers offer 10-Stage velocity sensitive valving, and are custom valved for each model kit we offer - meaning you get a set of shocks designed to preserve your factory ride quality.
FEATURES
- Maintains factory ride quality
- Maintains the stock track width
- Unmatched ground clearance
- Axles maintain factory position and angle
- No drilling or modifying of the differential
- No drivetrain or exhaust modifications required
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
SPECIFICATIONS
- Brand: Rough Country
-
SKU: 10330
- Est. Install Time: 8 - 10 hours
NOTES - IMPORTANT
- Requires minor cutting and drilling.
- Does NOT fit dually models.
- Does NOT fit models with Magnetic Ride Control.
- Gas models may require modification to the exhaust for driveshaft clearance
- Factory rear overload springs will NEED to be removed on equipped models.
- Does NOT work with factory wheels.
- Models equipped with factory 17-inch wheels must use 17-inch or larger aftermarket wheels due to larger calipers/rotor.
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
---|---|---|---|
2011-2019 | 2WD | Chevy | Silverado 2500 HD |
2011-2019 | 4WD | Chevy | Silverado 2500 HD |
2011-2019 | 2WD | Chevy | Silverado 3500 HD |
2011-2019 | 4WD | Chevy | Silverado 3500 HD |
2011-2019 | 2WD | GMC | Sierra 2500 HD |
2011-2019 | 4WD | GMC | Sierra 2500 HD |
2011-2019 | 2WD | GMC | Sierra 3500 HD |
2011-2019 | 4WD | GMC | Sierra 3500 HD |
RECOMMENDED TIRES & WHEELS
TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
---|---|---|---|---|
35x12.50R20 | 20x9 | 8x180 | -12 | - |
295/60R20 | 20x9 | 8x180 | -12 | - |
35x12.50R20 | 20x9 | 8x180 | +0 | - |
295/60R20 | 20x9 | 8x180 | +0 | - |
35x12.50R20 | 20x9 | 8x180 | +1 | - |
295/60R20 | 20x9 | 8x180 | +1 | - |
35x12.50R20 | 20x10 | 8x180 | -19 | Minor Trimming |
295/60R20 | 20x10 | 8x180 | -19 | Minor Trimming |
35x12.50R20 | 20x10 | 8x180 | -18 | Minor Trimming |
295/60R20 | 20x10 | 8x180 | -18 | Minor Trimming |
35x12.50R20 | 20x12 | 8x180 | -44 | Trimming Required |
295/60R20 | 20x12 | 8x180 | -44 | Minor Trimming |
35x12.50R22 | 22x10 | 8x180 | -19 | Minor Trimming |
285/55R22 | 22x10 | 8x180 | -19 | Minor Trimming |
35x12.50R22 | 22x10 | 8x180 | -18 | Minor Trimming |
285/55R22 | 22x10 | 8x180 | -18 | Minor Trimming |
35x12.50R22 | 22x12 | 8x180 | -44 | Trimming Required |
295/50R22 | 22x12 | 8x180 | -44 | Minor Trimming |
